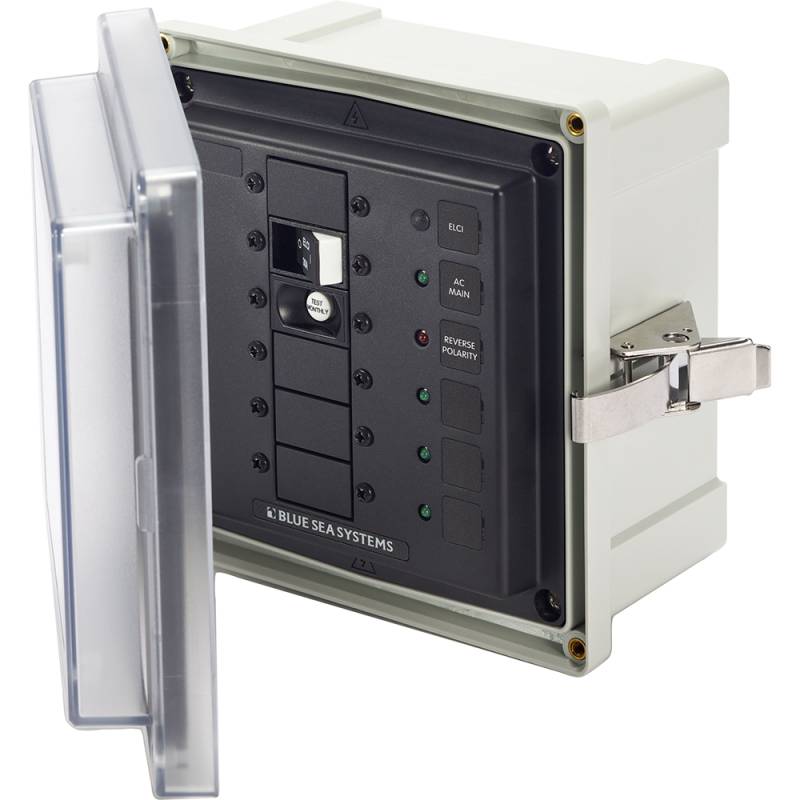

SMS Surface Mount System Panel Enclosure - 120V AC / 30A ELCI Main - 3 Blank Circuit Positions
Panel enclosure for ELCI Main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10 feet of the shore power inlet
Features:
- Includes one 120V AC / 30A ELCI Main and three blank positions
- Blank apertures for custom breaker loading
- Glass filled polycarbonate mounting box
- Clear cover allows easy view of circuit breaker status
- Overlapping cover for strength and increased gasket protection
- Oversized, formed in place seamless PUR gasket
- Easily removable stainless steel hinge pin for unobstructed installation
- Stainless steel latch secures cover without penetrating the enclosure
- Blank circuit positions accommodate Carling Technologies™ A- and C- Series Flat Rocker and ELCI Main circuit breakers
- Stainless steel mounting hardware included
- Includes waterproof glands
- LED lights for back lighting and ON indication
Specifications:
- Minimum Operating Temperature: -40° C
- Maximum Operating Temperature: 85° C
- Cover Screws and Hardware: 10-32 Stainless Steel
- Enclosure Size: 6.0" x 6.0" x 4.0" (152mm x 152mm x 102mm)
- Exterior Overall Dimensions: 7.6" x 7.4" x 4.7" (192mm x 188mm x 120mm)
- Mounting Hardware: 1/4" Diameter, #12 (6 mm)
- Weight: 4.15lb (1.88 kg)
