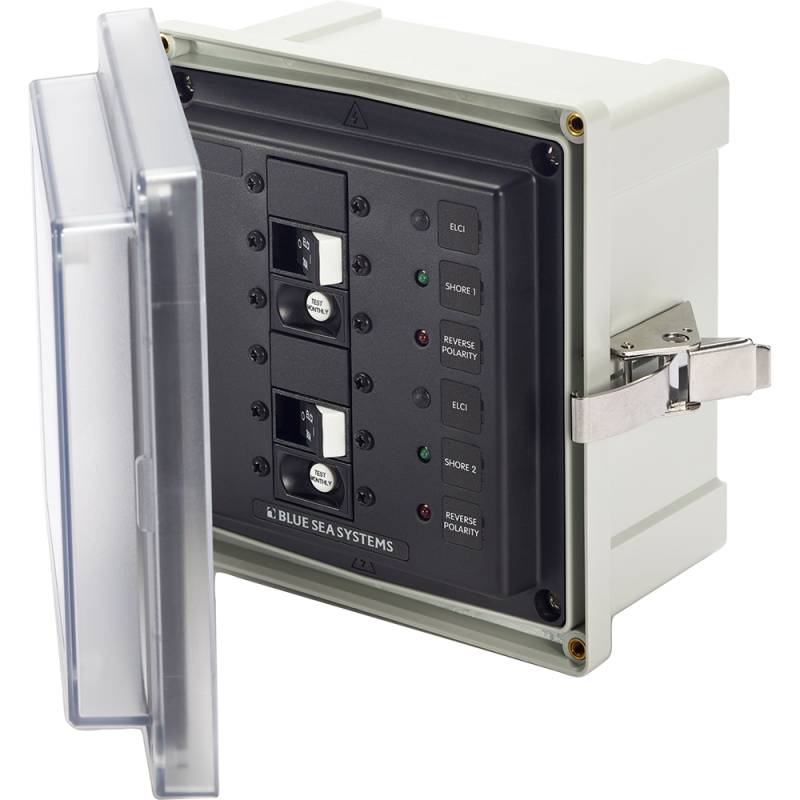

SMS Surface Mount System Panel Enclosure - 2 x 120V AC / 30A ELCI Main
Panel enclosure for ELCI Main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10 feet of the shore power inlet
Features:
- Includes one Dual 120V AC / 30A ELCI Main
- Glass filled polycarbonate mounting box
- Clear cover allows easy view of circuit breaker status
- Overlapping cover for strength and increased gasket protection
- Oversized, formed in place seamless PUR gasket
- Easily removable stainless steel hinge pin for unobstructed installation
- Stainless steel latch secures cover without penetrating the enclosure
- Stainless steel mounting hardware included
- Includes waterproof glands
- LED lights for back lighting and ON indication
Specifications:
- Minimum Operating Temperature: -40°C
- Maximum Operating Temperature: 85°C
- Cover Screws & Hardware: 10-32 Stainless Steel
- Enclosure Size: 6.0" x 6.0" x 4.0"
- Exterior Overall Dimensions: 7.6" x 7.4" x 4.7"
- Mounting Hardware: 1/4" Diameter, #12 (6mm)
- Weight: 6.5lbs
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
