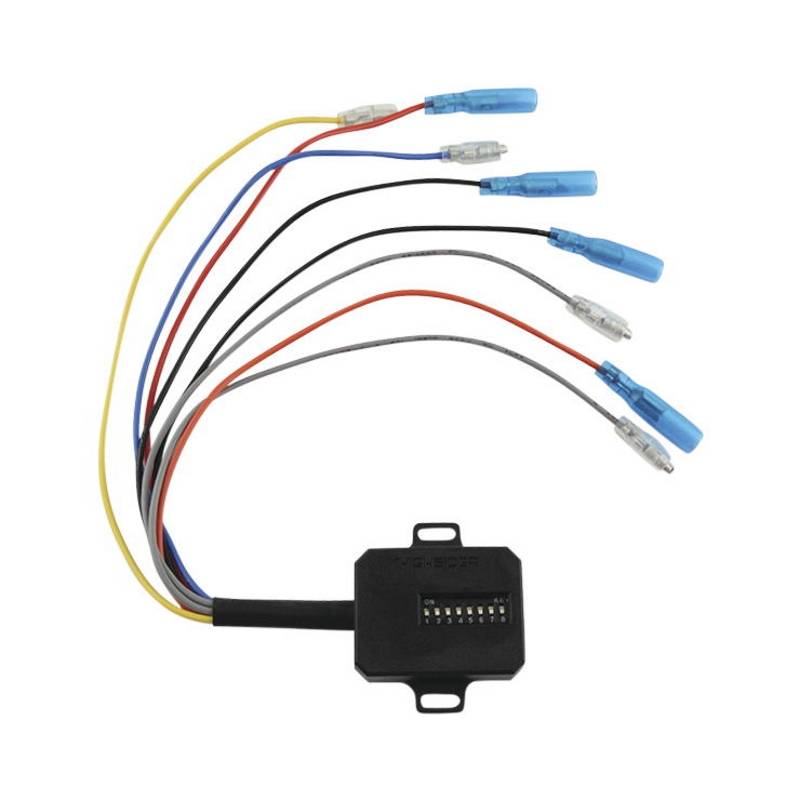

Our newly developed Highsider CBW1 CAN-BUS Resistor is suitable for most vehicles equipped with a CAN-BUS system. The resistor provides a required electrical load for your vehicle, which if the DIP switches are set correctly does not lead to an error message with accessory turn signals.
The following resistance values can be set: 150 Ohm, 170 Ohm, 200 Ohm, 240 Ohm, 300 Ohm, 400 Ohm, 600 Ohm, 1200 Ohm
Up to 2 channels can be operated, such as rear left and rear right indicators
If 2 pairs of indicators (VL,VR,HL,HR) are to be replaced, 2 x CBW1 are required
Connections: Yellow wire = Input channel 1 (+),Orange wire = Output channel 1 (+),Blue wire = Input channel 2 (+),Red wire = Output channel 2 (+),Gray wire = Input ground (-),Black wire = Output ground (-)
Note: Requirements for the use of the CBW1 on the vehicle: Either LED indicators were installed on the vehicle in their original condition or the vehicle has a CAN-BUS system
