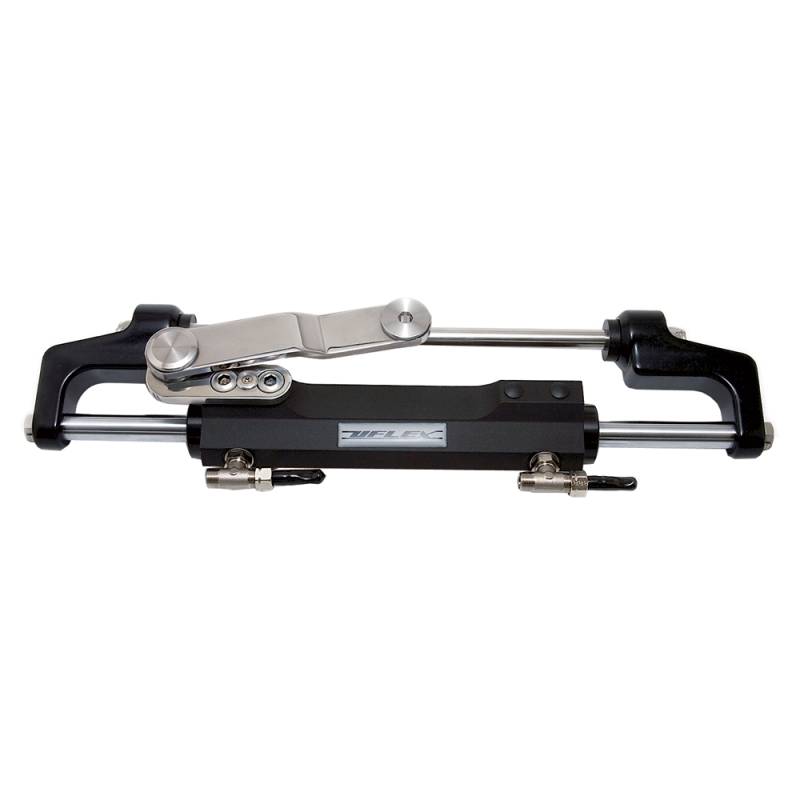

UFlex UC128-OBF/2 Front Mount Cylinder w/Offset Link Arm

UC128-OBF-2 - Front Mount Cylinder
w/offset LinkArm

Balanced: The number of turns lock-to-lock is equal port to starboard or vice-versa. High resistance stainless steel connection bolt.

• Volume: 120cc: 7.3 cu. in

• Output Force: 450 kg - 992 lbs

• Inside Diameter: 35mm - 1.37"

• Stroke: 185mm - 7.28"

• 3/8" (9,5 mm fittings) - For high pressure flex hose

• Bleed Fittings: DN5 Quick connect
