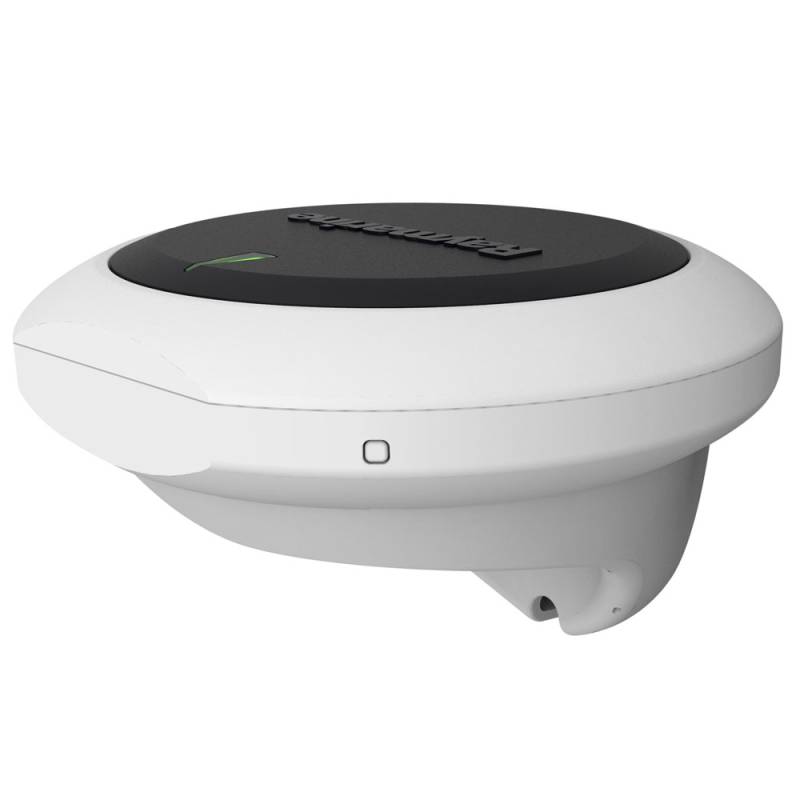

Raymarine EV-1 Sensor Core

E70096
Not Available
Pricing: $799.99

Description

The EV Sensor Core

At the center of every Evolution system is the intelligent EV sensor core, a 9-axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-to-install housing.

Mount the EV sensor core above or below decks, the rugged enclosure is fully sealed and built to IPX6 and IPX7 waterproofing and submersion standards.

The EV-1 is designed for Evolution mechanical and hydraulic autopilot systems. SeaTalkng networking enables a single cable connection for power and data to the Evolution ACU (actuator control unit) and extended SeaTalkng and NMEA2000 networks.

Features:
  • Precision monitoring of heading, pitch, roll, and yaw allowing the autopilot to evolve instantly as sea conditions and vessel dynamics change
  • Flexible installation options. Mount above or below deck
  • Simple SeaTalkng connectivity to the control head and ACU
  • Solid state sensor technology delivers dynamic accuracy to within 2° in all conditions
  • Auto-compensation for on board magnetic fields and reliable heading accuracy in the northern and southern extremes
  • Fast and reliable heading data for MARPA, radar overlay, and heading modes on Raymarine multifunction displays

Application List

Universal

Details

  • E70096
  • E70096
  • 723193768884
  • Raymarine
  • Temporarily Not Available
  • New

Shipping Information

  • Item Requires Shipping
  • 5.0 lbs.
  • W6.0000” x H10.0000” x L4.0000”
  • Free Ground Shipping (1 - 5 Days)
