Raymarine
Click on image to zoom

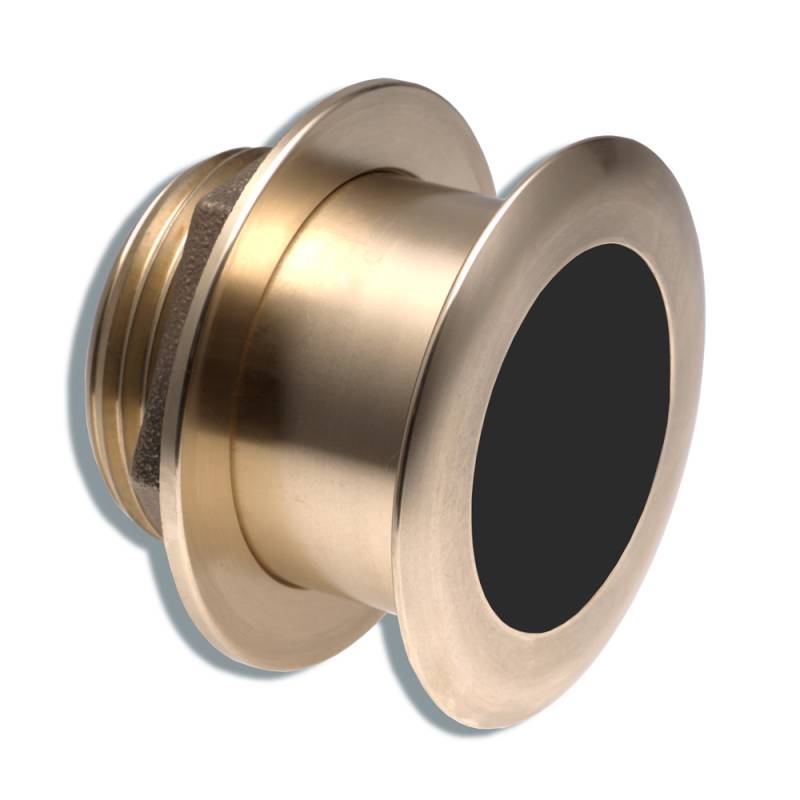

Raymarine B175L Bronze Low Profile Thru Hull 20 degree Tilted Element Transducer - 1kW

A80048

Description

B175L Bronze Low Profile Thru Hull 20° Tilted Element Transducer 1kW

Features
  • Material: Bronze
  • For use with CP450C or CP470 Chirp Sonar Module
  • Power (RMS): 1Kw
  • Max Depth(ft): 2,500
  • Frequency (khZ): 40-60
  • Beam Width(L/H): 32°-21°
  • Records: Depth / Temperature
  • Approved Hull Material: Fiberglass / Wood
  • Cable Length (Ft/M): 33ft / 10M
  • Supported Deadrise / Transom Angles: 16-24° Deadrise
  • Note: Using a Single B175 or B75 requires the A80328 Single Operation Cable

Application List

Universal

Shipping Information

  • Item Requires Shipping
  • 5.0 lbs.
  • W6.0000” x H10.0000” x L4.0000”
