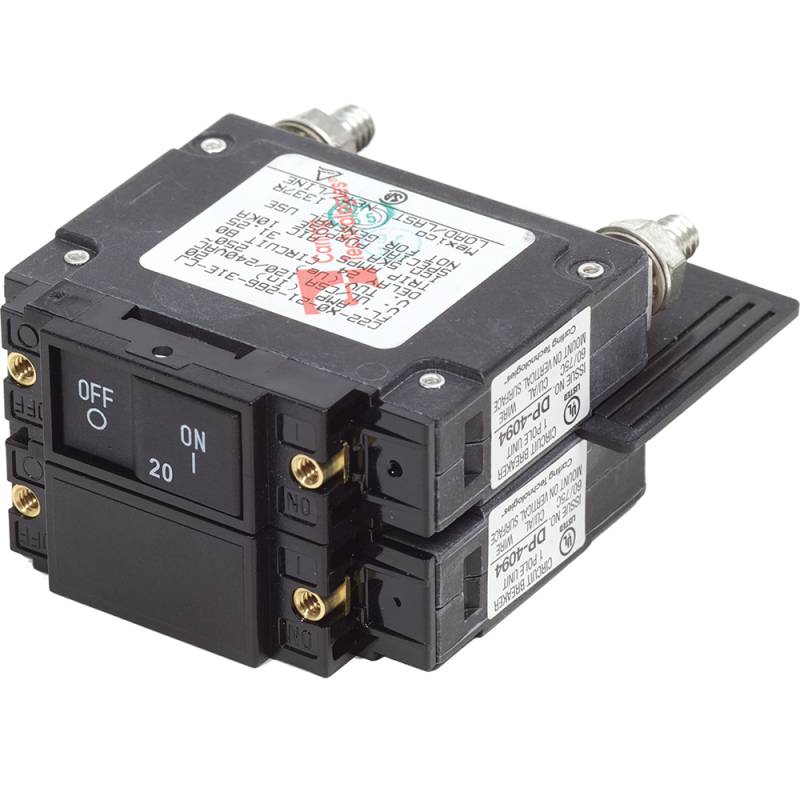

Blue Sea 7463 UL-489 Circuit Breaker - 20A Flat Rocker

7463

Description

7463 UL-489 Circuit Breaker - 20A Flat Rocker

Suitable for use when UL-489 specifications are required (Navy, Army, or Coast Guard vessels, and other vessels covered under CFR 46)

Specifications:

  • Amperage: 20A AC
  • Actuator Style: Flat Rocker
  • Poles: 2
  • Maximum Voltage: 240V AC
  • Circuit Breaker Type: Magnetic Hydraulic—Trip free
  • Terminal Stud Torque: 35 in-lb (3.95 Nm)
  • Interrupt Capacity: 5000A
  • Minimum Operating Temperature: -40° C
  • Maximum Operating Temperature: 85° C
  • Mounting Screw: #6-32 SS
  • Mounting Screw Torque: 8 in-lb (0.9 Nm)
  • Switching Cycles: 10000
  • Weight: 0.23lb (0.1 kg)

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Application List

Universal

Shipping Information

  • Item Requires Shipping
  • 0.6 lbs.
  • W4.0000” x H2.0000” x L8.0000”
