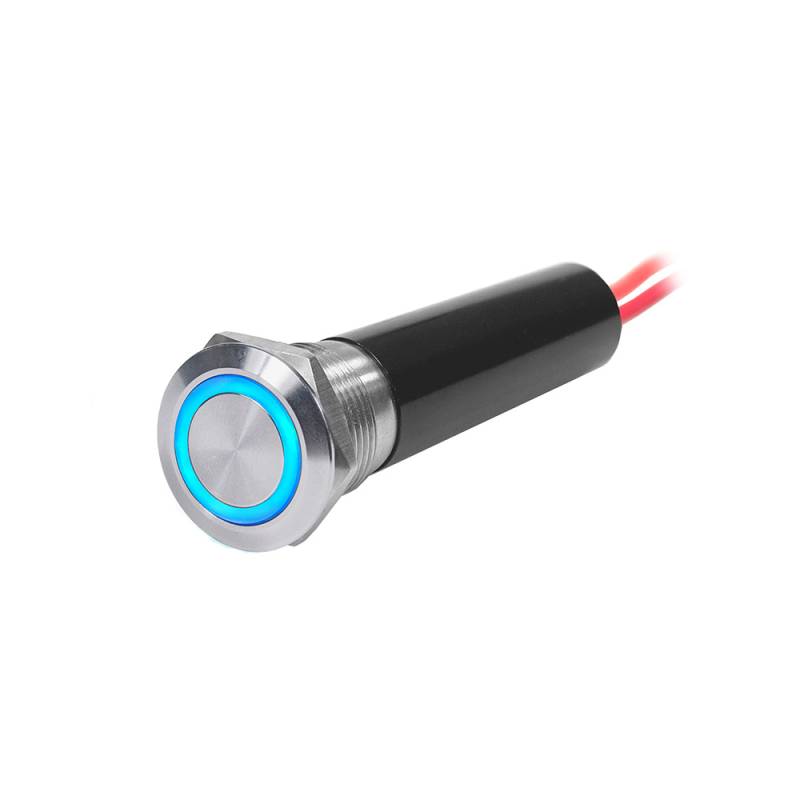

Blue Sea 4190 SS Push Button Switch - Off-On - Blue - 20A



4190 SS Push Button Switch - Off-On - Blue - 20A

  • 20A Continuous
  • Single Pole Single Throw
  • 16 AWG pigtail – positive & load connections
  • .110inch quick connect – LED ground (included in retail package)


Action: OFF-ON
Amperage: 20A @ 12V DC
Nominal Voltage: 12V DC
Maximum LED Operating Current: 20mA
Illumination: Dependent – Illuminates when output is on
Mounting Hole: 19mm
Termination: 2 – 6 inch flying leads 14 AWG, 1 – 0.110 inch Quick Connect terminal

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Application List


Shipping Information

  • Item Requires Shipping
  • 0.2 lbs.
  • W3.0000” x H2.0000” x L9.0000”
