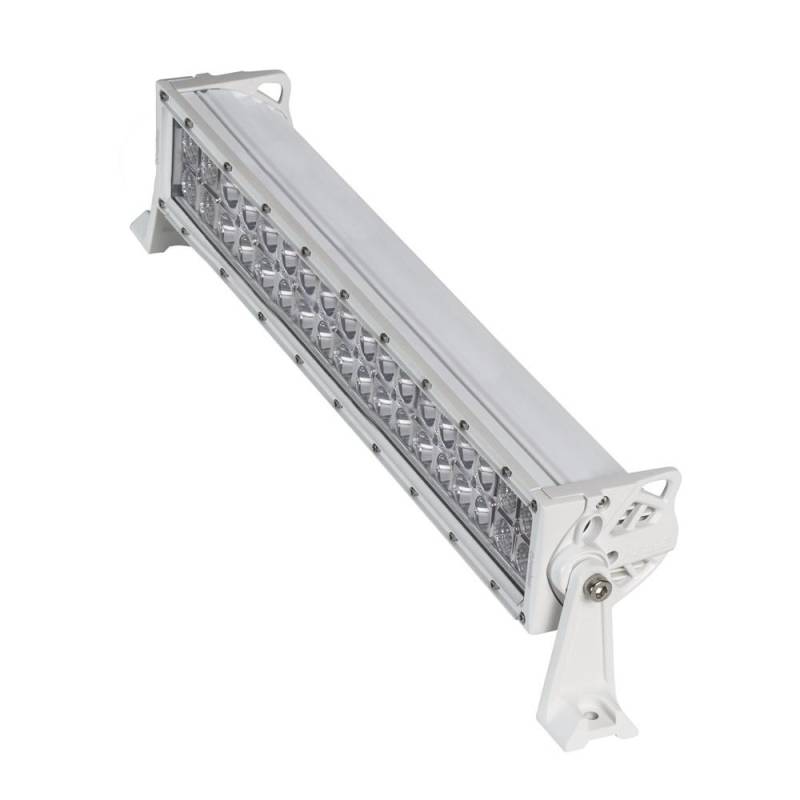

HEISE 20" Dual Row Marine Bar

HE-MDR20

Description

20" Dual Row Marine Bar

Specifications:

  • Input Voltage: 10-30V
  • Wattage: 108W
  • Raw Lumens: 8640
  • LUX @ 10M: 612
  • Color Temperature: 6000K
  • Beam Pattern: Combo: Flood (90°) / Spot (8°)

Construction:

  • Housing Material: Die-cast Aluminum Housing
  • Housing Color: White Coating with UV Inhibitors
  • Membrane: Gore™
  • Lens Material: PC
  • Mounting Bracket: Die-cast Aluminum
  • Hole Dimensions: Brackets turned inward - 19.50"
  • Brackets turned outward - 21.75"
  • Mounting Bolt Drill - .25"
  • Height of Light Bar Itself: 4.8"
  • Depth of Light Bar Itself: 3.50"
  • Electronics: Integrated–Epoxy Encapsulated
  • Hardware: Stainless 316

Operation:

  • Operating Temperature: -40°C to +60°C
  • Current Consumption: 5.7 Amps @ 13.8 Volts
  • IP Rating: IP68
  • Protections: Reverse Polarity

WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Application List

Universal

Shipping Information

  • Item Requires Shipping
  • 7.0 lbs.
  • W6.0000” x H6.0000” x L27.0000”
  • Free Ground Shipping (1 - 5 Days)
