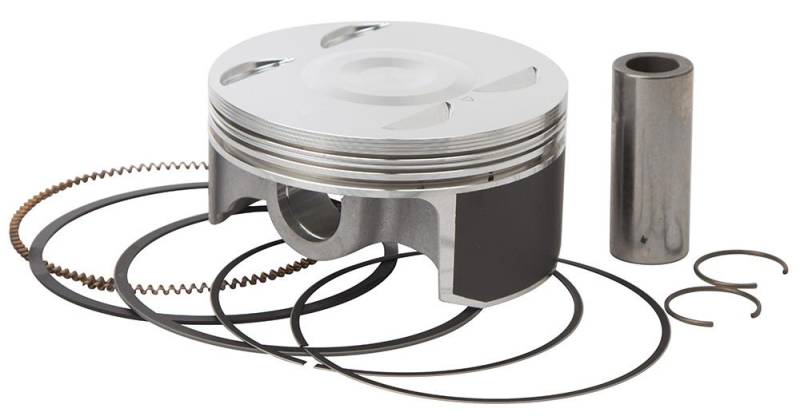

Vertex Forged High Compression Piston Kit - Standard Bore 101.96mm, 11.1:1 High Compression - 23966B

23966B

Description

All piston skirts are coated with a hi-tech Molybdenum Disulphite coating for faster break-in time and increased piston life
Cast Replica piston kits are gravity cast aluminum alloy (not forged) with 18% silicone content, which produces an extremely light but very strong piston
Forged Replica pistons are forged from 2618 aluminum for superior strength and durability
Forged High Compression pistons improve power and torque across entire rpm range
Forged Big Bore pistons increase engine's displacement, torque, and peak horsepower
Forged Replica pistons are forged OE replacements
All pistons are heat treated with a T-5 hardening and tempering cycle
Replica pistons and all rings are OEM replacements
Kits include piston, rings, wrist pin and circlips
Two stroke replacement rings are sold individually (Example if your piston has two rings you will want to order two rings)
Four-stroke piston rings sold as a set

Product Series

Application List

YearsMakeModelApplicationNotes
2018 - 2023YamahaYFM700 Grizzly EPS
2016 - 2018YamahaYFM700 Grizzly EPS LE
2018 - 2023YamahaYFM700 Grizzly EPS SE
2020 - 2023YamahaYFM700 Grizzly EPS XT-R
2014 - 2016YamahaYFM700 Grizzly FI 4x4 Auto
2014 - 2017YamahaYFM700 Grizzly FI 4x4 Auto EPS
2014 - 2017YamahaYFM700 Grizzly FI 4x4 Auto EPS SE
2015 - 2017YamahaYFM700 Raptor
2019 - 2023YamahaYFM700K Kodiak
2019 - 2023YamahaYFM700K Kodiak EPS
2019 - 2023YamahaYFM700K Kodiak EPS SE
2015 - 2023YamahaYFM700R Raptor
2015 - 2023YamahaYFM700R Raptor SE
2015 - 2017YamahaYXC700 Viking VI
2015 - 2023YamahaYXC700 Viking VI EPS
2016 - 2023YamahaYXC700 Viking VI EPS Ranch Edition
2015 - 2017YamahaYXC700 Viking VI EPS SE
2014 - 2015YamahaYXM700 Viking
2014 - 2015YamahaYXM700 Viking EPS
2018 - 2023YamahaYXM700 Viking EPS Ranch Edition
2014 - 2017YamahaYXM700 Viking EPS SE
2014 - 2017YamahaYXM700 Viking EPS with Suntop
2014 - 2017YamahaYXM700 Viking with Suntop

Shipping Information

  • Item Requires Shipping
  • 5.0 lbs.
  • W6.0000” x H10.0000” x L4.0000”
  • Free Ground Shipping (1 - 5 Days)
