Seizmik Universal LED Light Bar - 1.75in. - 12030

12030
Not Available
Pricing: $379.99

Description

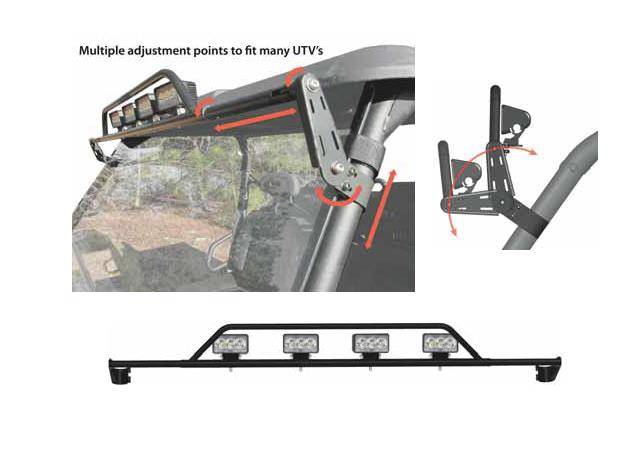

Innovative highly adjustable multi-pivot mounting system allows 1 lightbar to fit almost any vehicle even with different angle roll cages between 39in. and 60in. wide
Heavy-duty powder-coated steel construction with guard to protect light fixtures (included)
Includes 4 L.E.D. light fixtures, bar, mounting kit, harness and switch
Installs quickly and easily with no drilling into vehicle required
4 L.E.D. lights provide 3240 Lumens with 2 spot beams on the inside and 2 flood beams on the outside for maximum lighting throw and width
2 inside spots -18w/1080 Lumens each:
Operating Voltage: 10-30V DC each
Current Draw: .85A at 12v / .42A at 24v each
2 outside floods - 9w/540 Lumens each:
Operating Voltage: 10-30V DC each
Current Draw: 1.4A at 12v / .75A at 24v each
All 4 Lights combined:
Total Lumens (4): 3240(all 4)
Total Op. Voltage: 40-120V DC (all 4)
Total Current Draw (4): 4.5A at 12v / 2.34A at 24v (all 4)
Housing Material: Die-cast Aluminum
Mounting bracket: Stainless steel
Waterproof rate: 1 meter
Color Temp: 6000k

Product Series

Application List

YearsMakeModelApplicationNotes
2008 - 2010Bobcat2100 (Gas)
2008 - 2010Bobcat2200G (Gas)
2008 - 2009Bobcat2200S (Diesel)
2008 - 2010Bobcat2200SG (Gas)
2008 - 2010Bobcat2300
2011 - 2014Bobcat3200 4x2 (Gas)
2011 - 2015Bobcat3400 4x4 (Diesel)
2011 - 2015Bobcat3400 4x4 (Gas)
2014 - 2014Bobcat3400 4x4 Deluxe Package (Diesel)
2014 - 2014Bobcat3400 4x4 Deluxe Package (Gas)
2011 - 2015Bobcat3400XL 4x4 (Diesel)
2011 - 2015Bobcat3400XL 4x4 (Gas)
2014 - 2014Bobcat3400XL 4x4 Deluxe Package (Diesel)
2011 - 2012Bobcat3450 4x4
2013 - 2015Bobcat3600 4x4
2014 - 2014Bobcat3600 4x4 Deluxe Package
2013 - 2015Bobcat3650 4x4
2009 - 2014Cub CadetVolunteer 4x2
2008 - 2008Cub CadetVolunteer 4x2 FIS
2009 - 2014Cub CadetVolunteer 4x4
2008 - 2015Cub CadetVolunteer 4x4 EFI
2014 - 2015Cub CadetVolunteer 4x4D
2004 - 2015John DeereGator HPX 4x4
2010 - 2015John DeereGator HPX 4x4 Diesel
2013 - 2015John DeereGator RSX850i
2014 - 2014John DeereGator RSX850i Midnight Black Special Edition
2013 - 2015John DeereGator RSX850i Sport
2013 - 2015John DeereGator RSX850i Trail
2012 - 2015John DeereGator XUV 550
2013 - 2015John DeereGator XUV 550 S4
2007 - 2010John DeereGator XUV 620i 4x4
2011 - 2015John DeereGator XUV 625i 4x4
2011 - 2015John DeereGator XUV 825i 4x4
2013 - 2015John DeereGator XUV 825i 4x4 Power Steering
2013 - 2015John DeereGator XUV 825i 4x4 S4
2016 - 2017PolarisRanger 570
2016 - 2017PolarisRanger 570 EPS
2013 - 2014PolarisRanger 800 EFI
2013 - 2013PolarisRanger 800 EFI EPS
2013 - 2014PolarisRanger 800 EFI EPS LE
2013 - 2013PolarisRanger 800 EFI LE
2013 - 2014PolarisRanger 800 EFI Mid-Size
2013 - 2013PolarisRanger 800 EFI Mid-Size LE
2014 - 2014PolarisRanger 800 EPS Mid-Size LE
2010 - 2012PolarisRanger 800 XP
2010 - 2012PolarisRanger 800 XP EPS
2012 - 2012PolarisRanger 800 XP EPS LE
2012 - 2012PolarisRanger 800 XP LE
2008 - 2013PolarisRanger RZR 800
2010 - 2011PolarisRanger RZR 800 EPS
2012 - 2013PolarisRanger RZR 800 EPS LE
2012 - 2013PolarisRanger RZR 800 LE
2009 - 2013PolarisRanger RZR 800 S
2012 - 2013PolarisRanger RZR 800 S LE
2011 - 2013PolarisRanger RZR XP 900
2013 - 2013PolarisRanger RZR XP 900 EPS LE
2011 - 2013PolarisRanger RZR XP 900 LE
2014 - 2014PolarisRZR 800
2014 - 2014PolarisRZR 800 EPS LE
2014 - 2015PolarisRZR 900
2014 - 2014PolarisRZR 900 EPS LE
2015 - 2015PolarisRZR 900 EPS Trail
2014 - 2014PolarisRZR S 800
2014 - 2014PolarisRZR S 800 EPS LE
2015 - 2015PolarisRZR S 900
2015 - 2015PolarisRZR S 900 EPS
2015 - 2015PolarisRZR XP 1000 EPS
2014 - 2014PolarisRZR XP 1000 EPS LE
2006 - 2009YamahaYXR45F Rhino 450
2007 - 2008YamahaYXR45F Rhino 450 Special Edition
2004 - 2007YamahaYXR66F Rhino 660
2007 - 2007YamahaYXR66F Rhino 660 Ducks Unlimited
2006 - 2007YamahaYXR66F Rhino 660 Exploring Edition
2006 - 2007YamahaYXR66F Rhino 660 Special Edition
2007 - 2007YamahaYXR66F Rhino 660 Sport Edition
2008 - 2013YamahaYXR700F Rhino 700 FI
2008 - 2009YamahaYXR700F Rhino 700 FI Ducks Unlimited
2008 - 2013YamahaYXR700F Rhino 700 FI Special Edition
2008 - 2013YamahaYXR700F Rhino 700 FI Sport Edition

Details

  • 12030
  • 12030
  • Seizmik
  • Temporarily Not Available
  • New

Shipping Information

  • Item Requires Shipping
  • 5.0 lbs.
  • W6.0000” x H10.0000” x L4.0000”
