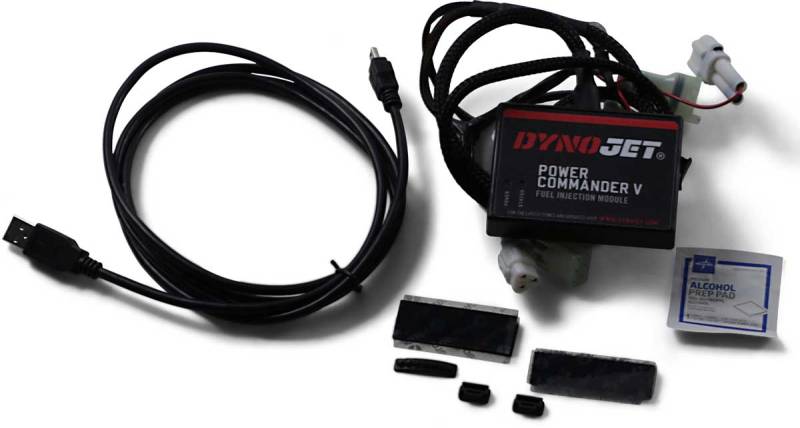

Dynojet Research Power Commander V - 22-012

22-012

Description

Fuel control for each individual cylinder in a smaller enclosure
Warm-up fuel adjustment (unit reads engine temp and allows fuel/ timing adjustments based on the reading)
Reduced size from the PCIII USB
Easy to install
USB powered from computer; 9 volt adapter is no longer needed
Two-position map-switching function built in
Can add any Single Pole Single Throw (SPST) switch and toggle between two different fuel maps
Gear/ speed input allows for map adjustment based on gear
Analog input allows user to install any 0-5 volt sensor
Build an adjustment table based on analog input such as boost or temperature
Power Commander V is capable of allowing each cylinder to be mapped individually and for each gear with the gear position input connected
More tuning ranges than PCIII USB
Enhanced accel pump utility
Made in the U.S.A.

Product Series

Application List

YearsMakeModelApplicationNotes
2006 - 2007YamahaXV1900 Roadliner
2006 - 2009YamahaXV1900CT Stratoliner
2010 - 2014YamahaXV1900CT Stratoliner Deluxe
2006 - 2008YamahaXV1900CTM Stratoliner Midnight
2010 - 2014YamahaXV1900CTS Stratoliner S
2006 - 2009YamahaXV1900M Roadliner Midnight
2009 - 2014YamahaXV1900S Roadliner S

Shipping Information

  • Item Requires Shipping
  • 5.0 lbs.
  • W6.0000” x H10.0000” x L4.0000”
  • Free Ground Shipping (1 - 5 Days)
