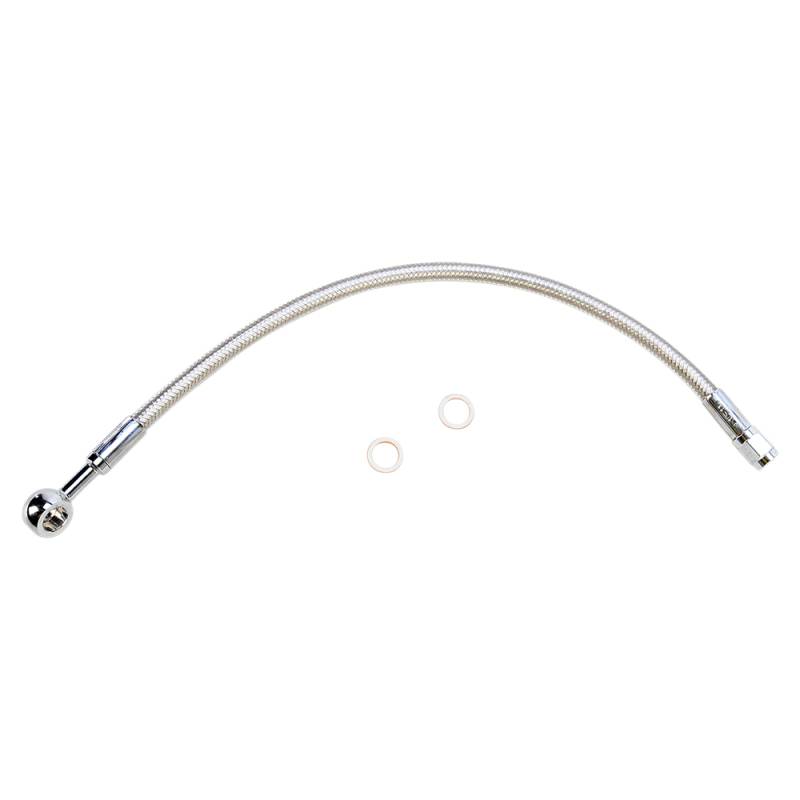

Magnum Polished Stainless Designer Series Front Upper Brake Line - 3/8in./10mm, 180deg. Banjo - 23in. - 57623

57623

Description

Manufactured specifically for Softail and Dyna Models with Single Front Disc ABS brakes.
Special construction is specifically designed to be compatible with Harley-Davidson ABS requirements for stock and alternate length brake lines.
Brake kits utilize a two-piece design consisting of a direct bolt-on lower assembly used in conjunction with alternative length upper lines.
-3AN connections make for easy installations.
Choice of 90, 35 or 180 upper brake line banjo angles ensure a great fit.
Both the ABS Lower and ABS Upper assemblies need to be purchased in order to connect all the necessary components of an ABS Single Disc Front Brake Line.
All fittings are highly polished and chrome or black chrome plated.
Note: Upper and lower brake line kits are sold separately to allow for a perfect fitment.
Note: Non-stock applications require taking a measurement for the upper brake line length and banjo angle to ensure correct fitment (see How to Order.)
Note: Harley-Davidson motorcycles equipped with single disc ABS (anti-lock brake system require ABS specific upper and lower brake line kits.Failure to do so may result in compromised anti-lock braking ability.Magnum Shielding brake line kits manufactured specifically for these applications are identified with the letters ABS printed directly on the brake hose.

Product Series

Application List

YearsMakeModelApplicationNotes
1994 - 2013Harley DavidsonFLHR Road KingDual Disc
2007 - 2011Harley DavidsonFLHRC Road King ClassicDual Disc
1998 - 2006Harley DavidsonFLHRCI Road King ClassicDual Disc
1996 - 2006Harley DavidsonFLHRI Road KingDual Disc
2004 - 2007Harley DavidsonFLHRS Road King CustomDual Disc
2004 - 2006Harley DavidsonFLHRSI Road King CustomDual Disc
2014 - 2020Harley DavidsonFLHTCUTG Tri Glide UltraDual Disc Requires Trike Upper Brake Line Adapter
2015 - 2016Harley DavidsonFLRT FreewheelerDual Disc Requires Trike Upper Brake Line Adapter
1998 - 2007Harley DavidsonFLTR Road GlideDual Disc
1998 - 2006Harley DavidsonFLTRI Road GlideDual Disc

Shipping Information

  • Item Requires Shipping
  • 5.0 lbs.
  • W6.0000” x H10.0000” x L4.0000”
