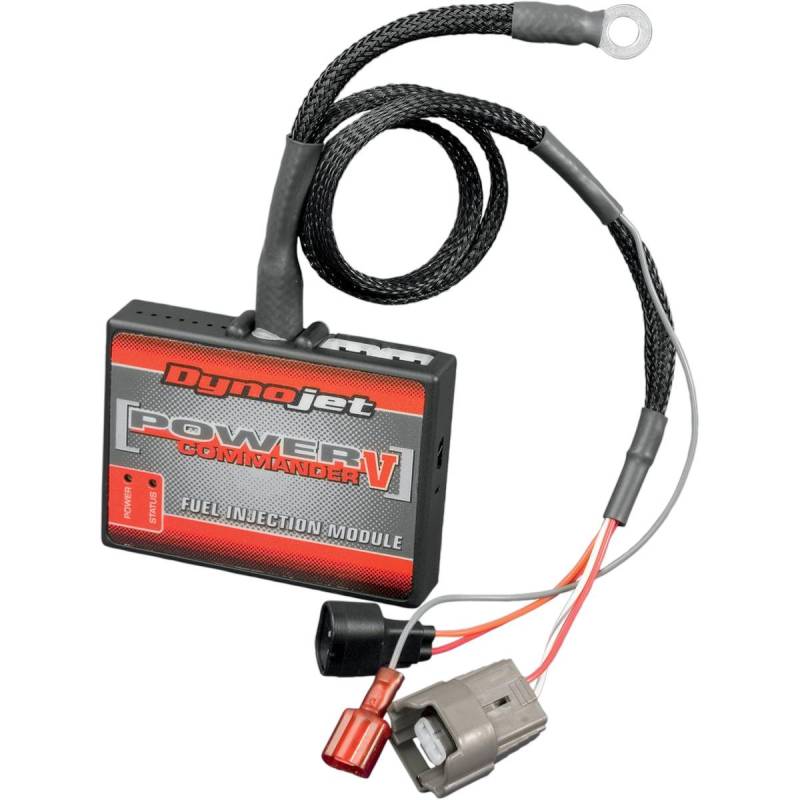

Dynojet Research Power Commander V - 16-028M

16-028M

Description

Fuel control for each individual cylinder in a smaller enclosure
Warm-up fuel adjustment (unit reads engine temp and allows fuel/ timing adjustments based on the reading)
Reduced size from the PCIII USB
Easy to install
USB powered from computer; 9 volt adapter is no longer needed
Two-position map-switching function built in
Can add any Single Pole Single Throw (SPST) switch and toggle between two different fuel maps
Gear/ speed input allows for map adjustment based on gear
Analog input allows user to install any 0-5 volt sensor
Build an adjustment table based on analog input such as boost or temperature
Power Commander V is capable of allowing each cylinder to be mapped individually and for each gear with the gear position input connected
More tuning ranges than PCIII USB
Enhanced accel pump utility
Made in the U.S.A.

Product Series

Application List

YearsMakeModelApplicationNotes
2012 - 2013HondaTRX500FE FourTrax Foreman 4x4 ES
2014 - 2014HondaTRX500FE1 FourTrax Foreman 4x4 ES
2014 - 2014HondaTRX500FE2 FourTrax Foreman 4x4 ES with EPS
2012 - 2013HondaTRX500FM FourTrax Foreman 4x4
2014 - 2014HondaTRX500FM1 FourTrax Foreman 4x4
2014 - 2014HondaTRX500FM2 FourTrax Foreman 4x4 with EPS
2012 - 2013HondaTRX500FPE FourTrax Foreman 4x4 ES w/Power Steering
2012 - 2013HondaTRX500FPM FourTrax Foreman 4x4 w/ Power Steering

Shipping Information

  • Item Requires Shipping
  • 5.0 lbs.
  • W6.0000” x H10.0000” x L4.0000”
  • Free Ground Shipping (1 - 5 Days)
