Trail Tech Voyager Pro GPS Kit - 922-118

922-118

Description

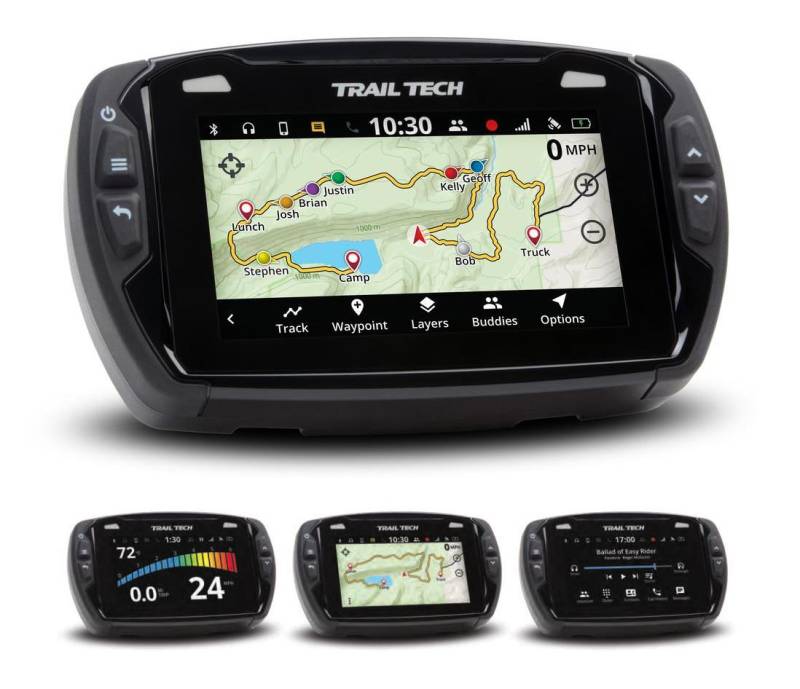

Trail Tech Voyager Pro, the Connected Riders GPS. A premium GPS for Powersports.
The map screen is enabled with base maps, topography lines, hill shading, and some trails. Record or load GPX trails and riding areas, and transfer to a PC using the MicroSD card. Voyager Pro comes loaded with North American maps, but other map regions can be downloaded for free.
Amongst the major features is Buddy Tracking. Buddy Tracking uses localized radio signals and can support up to 20 riders in a single group. View members of your ride group on the map screen in real time, increase your following distances, and use the emergency beacon to summon your buddies. Cell reception is not required.
Voyager Pro is Bluetooth enabled for intercom, phone and media controls. Play songs from your phone or MicroSD card using a Bluetooth headset, speaker, or intercom. Two phones and two headsets can be connected at the same time.
The 4in. glove friendly color touchscreen TFT display is visible in all conditions, including direct sunlight. Sealed and rated IP67 for anti-dust/water intrusion, it is built to withstand the harshest elements that come with extreme riding conditions. The mounting dock hard mounts to the dashboard, can be locked, and allows for quick removal of Voyager Pro from the machine. The dock utilizes the AMPs hole pattern, and is compatible with the full line of RAM brand mounts or Trail Tech mounting hardware.
Voyager Pro integrates with your vehicle using standard Trail Tech vehicle sensors, providing vital ride data such as engine temperature, RPM, battery voltage, speed/distance and more.
At 5.6 x 3.5 inches, Voyager Pro still fits on dirt bike dashboards, but is big enough to use on adventure bikes and UTVs. Voyager Pros mapping abilities and buddy tracking make it the premium choice for off-road riders.
12V DC power required, make sure your vehicle has a battery.
EVERYBODY LOVES THE TACH GRAPH!
The tach screen is dominated by a large animated tachometer bar graph. It also displays ambient temperature, trip distance an

Product Series

Application List

YearsMakeModelApplicationNotes
2000 - 2005BombardierDS650
2005 - 2006BombardierDS650 X
2007 - 2007Can-AmDS 650 X
2003 - 2006KawasakiKFX400
2008 - 2013KawasakiKFX450R
2008 - 2010PolarisOutlaw 450 MXR
2006 - 2007PolarisOutlaw 500
2007 - 2011PolarisOutlaw 525 IRS
2008 - 2010PolarisOutlaw 525 S
2003 - 2008SuzukiLT-Z400 QuadSport Z
2008 - 2014YamahaYFM450 Grizzly 4x4 Auto
2011 - 2014YamahaYFM450 Grizzly 4x4 Auto EPS
2009 - 2010YamahaYFM450 Grizzly 4x4 Auto IRS
2018 - 2018YamahaYFM450 Kodiak 450
2018 - 2018YamahaYFM450 Kodiak 450 EPS
2001 - 2005YamahaYFM660R Raptor
2013 - 2018YamahaYFM700 Raptor
2006 - 2018YamahaYFM700R Raptor
2004 - 2013YamahaYFZ450
2009 - 2017YamahaYFZ450R
2010 - 2011YamahaYFZ450X

Shipping Information

  • Item Requires Shipping
  • 5.0 lbs.
  • W6.0000” x H10.0000” x L4.0000”
  • Free Ground Shipping (1 - 5 Days)
