EPI EZ Clutch Tool - EZCTP1

EZCTP1
Not For Sale

Description

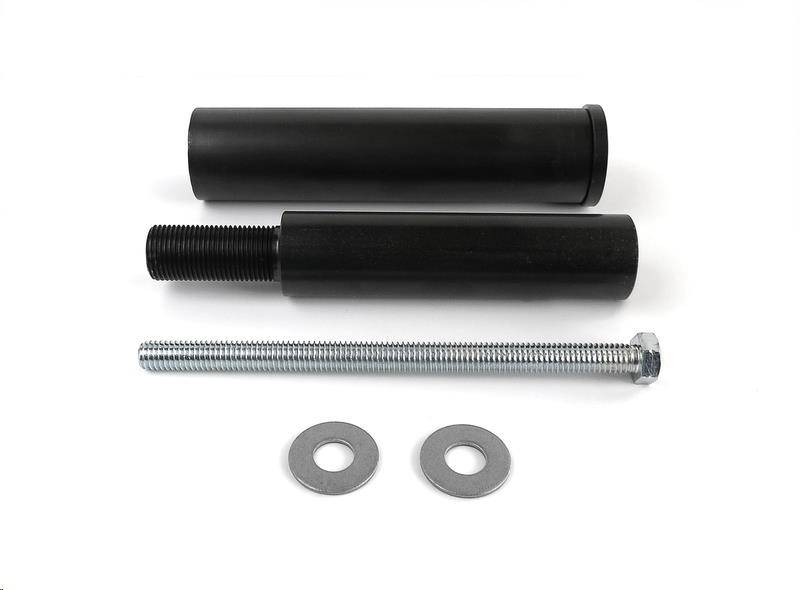

This simple tool allows you to change the spring and weights in your Polaris primary clutch without removing it from the motor! Simply remove the clutch retaining bolt, thread the EZ Clutch Tool into the clutch shaft and tighten the adjustment bolt on the tool to compress the clutch. Now you can spin the clutch to each weight pin and change weights! Need to change the spring? No problem! The tool is designed to let the clutch cover be removed also. With EZ Clutch Tool in place, remove cover bolts (mark the cover for reinstallation orientation first), and loosen the adjustment bolt on the tool to back the cover off and gain access to the spring. A must-have tool for the tuner to make quick and EZ changes. Works with all Polaris primary clutches that use pullers PCP-1, PCP-8, PCP-9 and PCP-12

Application List

MODELYEARS
Polaris
Ranger Crew XP 1000 EPS2019
Ranger XP 1000 EPS2018–2019
RZR 8002014
RZR 800 XC Edition2014
RZR RS12018–2019
Scrambler 8502015–2019
Scrambler 850 XP HO2013–2014
Scrambler 850 XP HO EPS LE2013–2014
Scrambler 1000 XP2016–2018
Scrambler 1000 XP EPS2014–2015
Sportsman 5502012–2013
Sportsman 550 EFI2010–2011
Sportsman 550 EFI Touring w/ EPS2010–2011
Sportsman 550 EFI w/ EPS2010–2011
Sportsman 550 EFI XP2009
Sportsman 550 EFI XP w/ EPS2009
Sportsman 550 EPS2012–2014
Sportsman 550 EPS Browning LE2011–2014
Sportsman 550 EPS Orange Madness LE2012
Sportsman 550 EPS Stealth Black LE2013
Sportsman 550 Touring EPS2012–2014
Sportsman 550 X22010–2013
Sportsman 550 X2 EPS2014
Sportsman 8502015–2019
Sportsman 850 EFI Touring EPS2010–2011
Sportsman 850 EFI X22011
Sportsman 850 EFI XP2009–2011
Sportsman 850 EFI XP w/ EPS2009–2011
Sportsman 850 High Lifter Edition2016–2019
Sportsman 850 HO Touring EPS2012–2014
Sportsman 850 HO Touring EPS Bronze Mist LE2012, 2014
Sportsman 850 HO Touring EPS Sunset Red LE2013
Sportsman 850 HO XP2012–2013
Sportsman 850 HO XP EPS2012–2014
Sportsman 850 HO XP EPS Browning LE2012–2014
Sportsman 850 HO XP EPS Orange Madness LE2012
Sportsman 850 HO XP EPS Pearl White LE2014
Sportsman 850 HO XP EPS Stealth Black LE2013
Sportsman 850 SP2015–2019
Sportsman 850 Touring SP2015–2019
Sportsman 1000 Touring XP2015–2019
Sportsman 1000 Touring XP Limited2016
Sportsman 1000 XP2015–2019
Sportsman 1000 XP High Lifter Edition2016–2019
Sportsman 1000 XP Hunter Edition2016–2019

Shipping Information

  • Item Requires Shipping
  • 5.0 lbs.
  • W6.0000” x H10.0000” x L4.0000”
