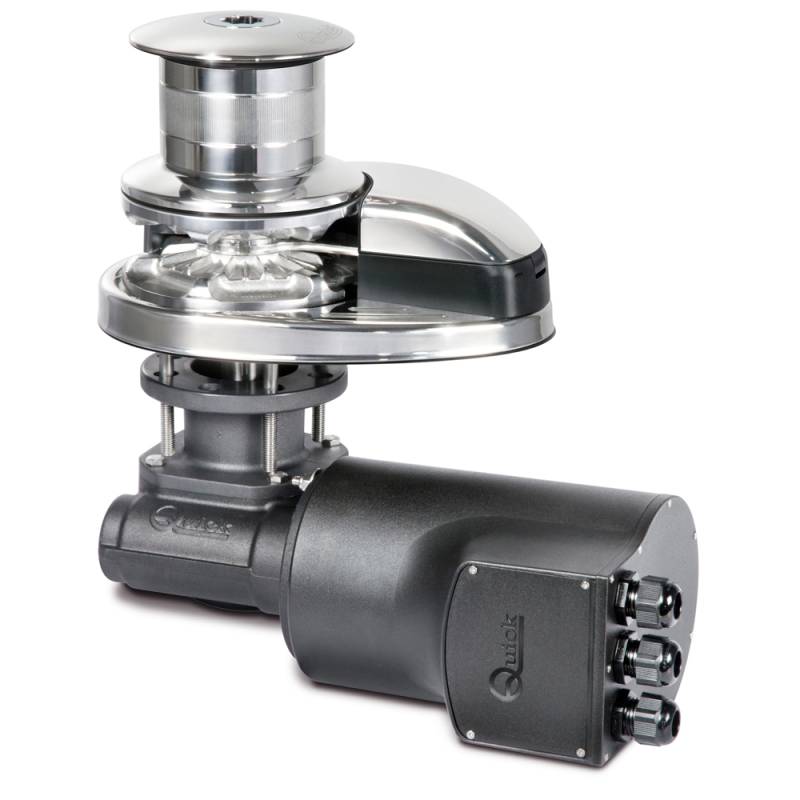

Quick Prince DP3 1012D Windlass w/Drum 1000W - 12V - 8mm or 5/16" Gypsy

FSDP31012D08C01

Description

Quick Prince DP3 1012D Windlass w/Drum - 1000W - 12V - 8mm or 5/16" Gypsy

Features
  • 1000W, 12V, 8mm or 5/16" Gypsy
  • Maximum Pull - 2204lb
  • Maximum Working load - 815.7lb
  • Working load - 264.5lb
  • Maximum Chain Speed (2) - 121 ft/min
  • Maximum Chain Speed @ working load (2) - 67 ft/min
  • Vertical windlasses
  • With Drum
  • Stainless steel Aisi 316 base
  • Rope and chain on a single gypsy
  • Manual Free-Fall system
  • Supplied with pressure lever, up/down switch, circuit breaker
  • Inspection cover
  • Motor watertight to IP67
  • Anodized aluminium gearbox
