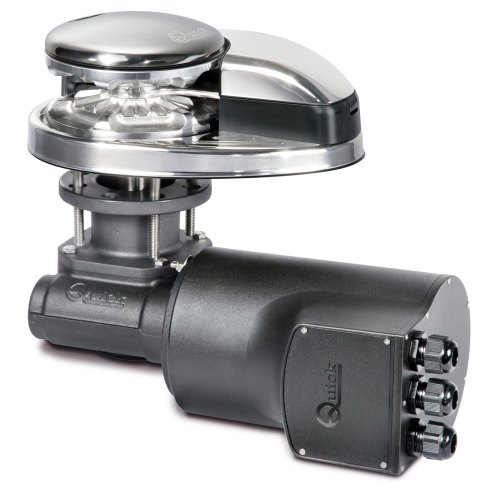

Quick Prince DP3 1512 Windlass 1500W - 12V - 10mm or ⅜" Gypsy

FSDP31512010C01

Description

Quick Prince DP3 1512 Windlass - 1500W - 12V - 10mm or 3/8"
Gypsy

Features
  • 1500W, 12V, 10mm or 3/8" Gypsy
  • Maximum Pull - 2425lb
  • Maximum Working load - 1036.2lb
  • Working load - 352.7lb
  • Maximum Chain Speed (2) - 95.8 ft/min
  • Maximum Chain Speed @ working load (2) - 53.4 ft/min
  • Vertical windlasses
  • Stainless steel Aisi 316 base
  • Rope and chain on a single gypsy
  • Manual Free-Fall system
  • Supplied with pressure lever, up/down switch, circuit breaker
  • Inspection cover
  • Motor watertight to IP67
  • Anodized aluminium gearbox
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Application List

Universal

Shipping Information

  • Item Requires Shipping
  • 5.0 lbs.
  • W6.0000” x H10.0000” x L4.0000”
  • Free Ground Shipping (1 - 5 Days)
