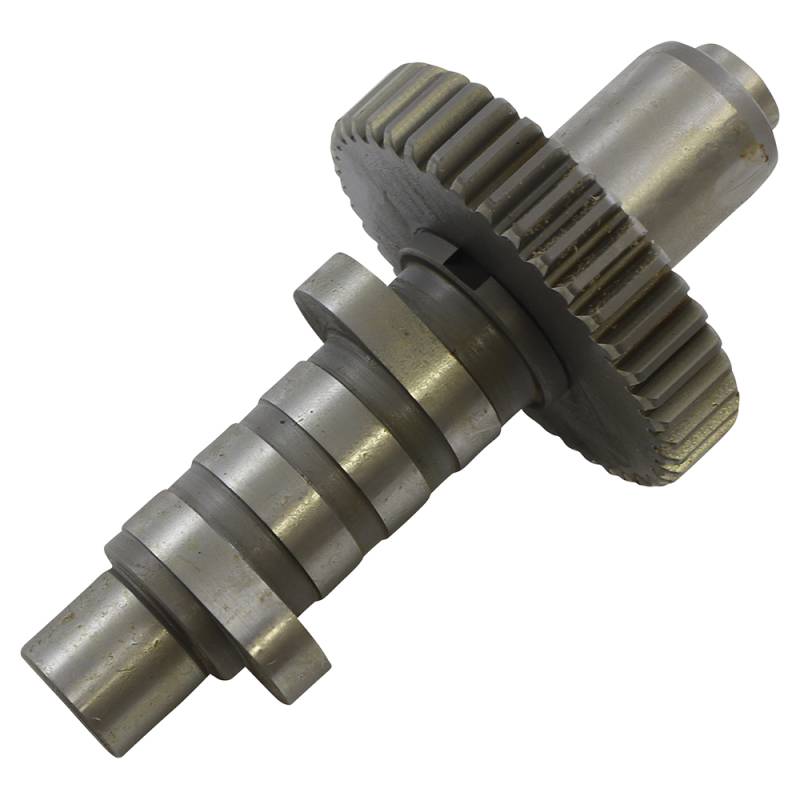

Andrews EV51 Camshaft - 291151

Measurement of cam and pinion gears is especially critical for 90 and later models to verify proper fit. Easy installation with longer duration for modified street engines with hydraulic lifters and a 9/1+ compression ratio Intake Opening (degrees): 28 Intake Closing (degrees): 44 Exhaust Opening (degrees): 54 Exhaust Closing (degrees): 22 Intake Duration (degrees): 252 Exhaust Duration (degrees): 256 Intake Lift (in): .510 Exhaust Lift (in): .510

Specifications

Application	Exhaust / Intake
Intake Duration	252°
Intake Lift	0.510"
Exhaust Lobe Centerline	106°
Grind	EV51
Exhaust Close	22°
Exhaust Duration	256°
Intake Open	28°
Product Name	Cam
Exhaust Lift at TDC	0.195"
Intake Close	44°
Intake Lobe Centerline	98°
Exhaust Lift	0.510"
Intake Lift at TDC	0.233"
Exhaust Open	54°
Type	Chain
