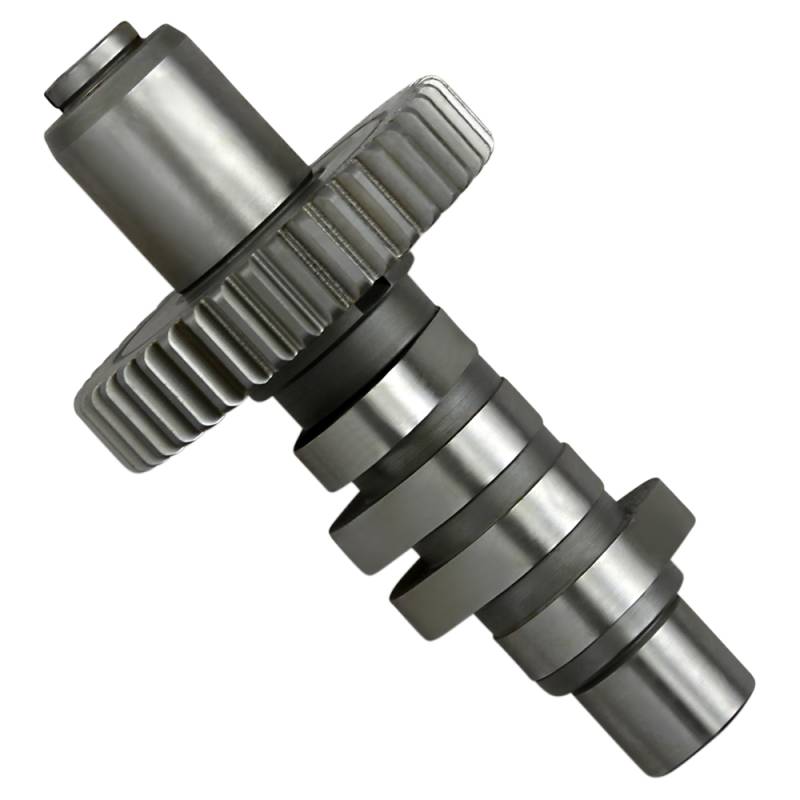

Andrews EV59 Camshaft - 291159

Measurement of cam and pinion gears is especially critical for 90 and later models to verify proper fit. Upgraded cam with fast ramps for modified 80 and 88 motors Use with AP springs and collars Very broad power band; 6000 RPM May be used with hydraulic lifters Intake Opening (degrees): 28 Intake Closing (degrees): 48 Exhaust Opening (degrees): 56 Exhaust Closing (degrees): 24 Intake Duration (degrees): 256 Exhaust Duration (degrees): 260 Intake Lift (in): .560 Exhaust Lift (in): .560

Specifications

Intake Lift	0.560"
Application	Intake / Exhaust
Exhaust Duration	260°
Exhaust Open	56°
Grind	EV59
Exhaust Lift at TDC	0.208"
Type	Gear
Exhaust Lobe Centerline	106°
Intake Close	48°
Intake Lobe Centerline	100°
Intake Open	28°
Intake Duration	256°
Exhaust Close	24°
Exhaust Lift	0.560"
Intake Lift at TDC	0.236"
Product Name	Cam
