SPECIFICATIONS
Displacement: 836cc
Bore - Standard: 61.00mm
Bore - Actual: 65.00mm
Bore - Oversize: 4.00mm
Stroke: 63.00mm
Compression Ratio - Actual: 10.25:1
Note: Cylinder boring required

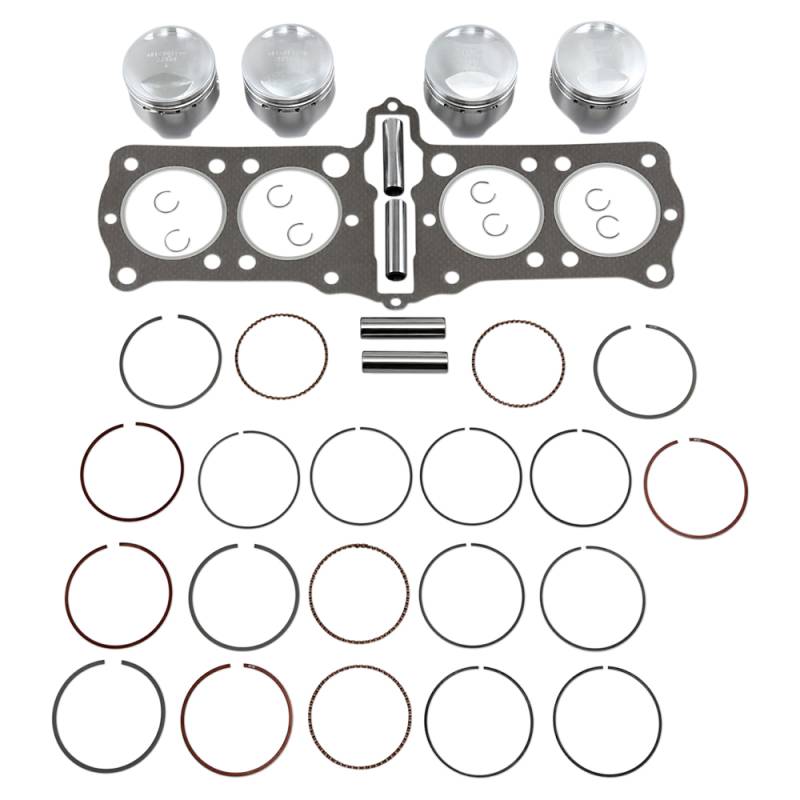

ITEM CONTENTS
2559XC - 65.00 mm Ring Set
4016M06500 - Honda CB750K 2v SOHC 69-78 10.25:1 CR
CW15 - ROUND WIRE PIN LOCKS 15MM (PAIR)
S522 - PistonPin 15mm x 2.205in. NonChromed TW
W4934 - Head Gasket CFM-20 Honda CB750
Contains all the necessary components for overboring or rebuilding your top end
Feature forged pistons, rings, wrist pins, circlips and top end gasket set
