SPECIFICATIONS
Displacement: 844cc
Bore - Standard: 65.00mm
Bore - Actual: 69.00mm
Bore - Oversize: 4.00mm
Stroke: 56.40mm
Compression Ratio - Actual: 10.25:1
Note: Cylinder boring required
ITEM CONTENTS
2717XC - 69.00 mm Ring Set
4035M06900 - Suzuki GS750 77-79 10.25:1 CR 2717XC
CW16 - ROUND WIRE PIN LOCKS 16MM (PAIR)
S259 - PistonPin 16mm x 2.299in. NonChromed TW
W2487 - Head Gasket CFM-20 Suzuki 844,870

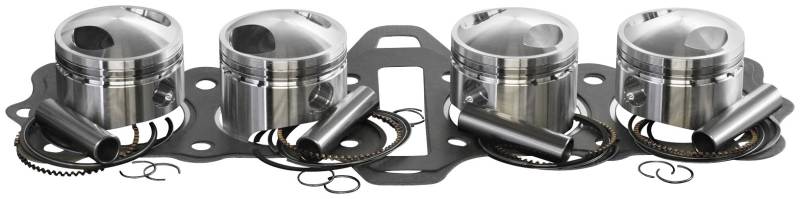

Contains all the necessary components for overboring or rebuilding your top end
Feature forged pistons, rings, wrist pins, circlips and top end gasket set
