Width: 804mm
Height: 104mm
Rise: 64mm
Base: 105mm
Sweep: 54mm
Control Length: 188mm
Features a tapered outer wall resulting in a 1-1/8in. clamping diameter and 7/8in. diameter at the control ends
7010 T6 aluminum with a braceless design and 5.0mm wall thickness at the bends to add strength
Laser etched positioning grid
Knurled grip area increases bonding between bars and grips
Shot peened, anodized finish protects against corrosion
Requires1-1/8in. bar mounts
Specifications| Color/Finish | Anodized / Red |
|---|

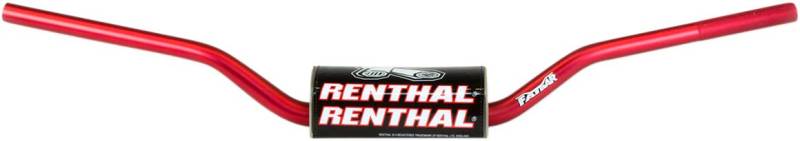

| Product Name | Handlebar |
|---|
| Clamping Diameter | 1-1/8" |
|---|
| Controls Diameter | 7/8" |
|---|
| Finish | Anodized |
|---|
| Height | 4-1/8" |
|---|
| Type/Bend | Fatbar / RC |
|---|
| Handlebar Diameter | 1-1/8" |
|---|
| Material | 7010-T6 Aluminum |
|---|
| Pullback/Sweep | 2-1/8" |
|---|
| Rise | 2-1/2" |
|---|
| Base Color | Red |
|---|
| Clamping Width | 4-1/8" |
|---|
| Style | Universal |
|---|
| Width | 31-5/8" |
|---|
| Features | Includes Pad / Smooth, Unknurled |
|---|
