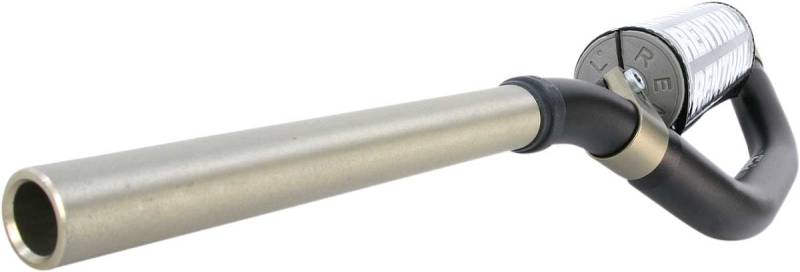

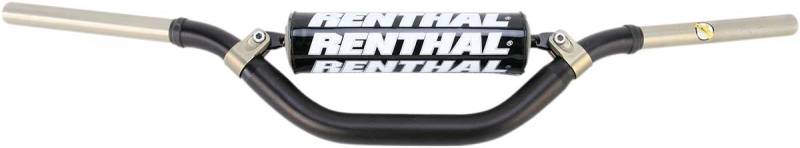

Renthal Twinwall Handlebar - RC Mini/85cc Bend - Black - 923-01-BK-11-219

923-01-BK-11-219
Not For Sale

Description

Width: 754mm
Height: 112mm
Rise: 80mm
Base: 80mm
Sweep: 40mm
Control Length: 170mm
Large diameter, 1-1/8in. (28.6mm), double-tubed handlebar that combines great strength, excellent resilience and a virtual guarantee against fatigue failure
Consists of 2 aluminum alloy tubes, one within the other
Outer tube is 7010 T73, which has extreem resistance to mecanhical damage and is anodized to prevent corrosion
Inner tube is ultra high strength 7010 T6 aluminum and is hard anodized to resist wear from twist grip and controls
Rubber seals cover the join to keep out water and cleaning fluids
Laser etched positioning grid in the middle for accurate positioning
Requires 1-1/8in. bar mounts
Bar pad included
Specifications
Material7010-T6 Aluminum
Type/BendTwinwall / Mini / RC
FeaturesKnurled Clutch End / Includes Pad / Crossbar
Width29-3/8"
Handlebar Diameter1-1/8"
Base ColorBlack
Clamping Diameter1-1/8"
Controls Diameter7/8"
Height4-7/16"
Rise3-1/8"
Clamping Width3-1/8"
Color/FinishBlack / Anodized
Pullback/Sweep1-5/8"
FinishAnodized
Product NameHandlebar
StyleUniversal

Application List

YearsMakeModelNotes
------

Shipping Information

  • Item Requires Shipping
  • 5.0 lbs.
  • W6.0000” x H10.0000” x L4.0000”
  • Free Ground Shipping (1 - 5 Days)
