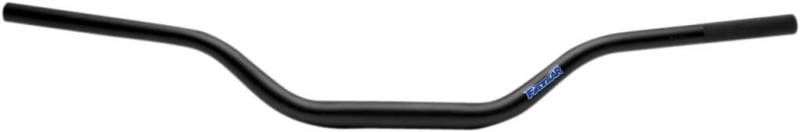

Renthal Fatbar Handlebar - McGrath/Short/KTM SX125-450 2016+ Bend - Black - 821-01-BK

821-01-BK
Not For Sale

Description

Width: 813mm
Height: 78mm
Rise: 42mm
Base: 150mm
Sweep: 54mm
Control Length: 200mm
Features a tapered outer wall resulting in a 1-1/8in. clamping diameter and 7/8in. diameter at the control ends
7010 T6 aluminum with a braceless design and 5.0mm wall thickness at the bends to add strength
Laser etched positioning grid
Knurled grip area increases bonding between bars and grips
Shot peened, anodized finish protects against corrosion
Requires1-1/8in. bar mounts
Specifications
Handlebar Diameter1-1/8"
Product NameHandlebar
Width32"
Material7010-T6 Aluminum
Type/BendFatbar / McGrath / Short
FinishAnodized
Color/FinishBlack / Anodized
StyleUniversal
Clamping Width5-7/8"
Controls Diameter7/8"
Base ColorBlack
Rise1-5/8"
FeaturesSmooth, Unknurled
Clamping Diameter1-1/8"
Pullback/Sweep2-1/8"
Height3-1/16"

Product Series

Application List

MODELYEARS
KTM
50 SX2016–2024
50 SX Factory Edition2021–2024
50 SX Mini2016–2023
65 SX2016–2024
85 SX (17/14)2016–2024
85 SX (19/16)2020–2024
125 SX2016–2024
150 SX2016–2022
250 SX2016–2024
300 SX2023–2024

Shipping Information

  • Item Requires Shipping
  • 5.0 lbs.
  • W6.0000” x H10.0000” x L4.0000”
  • Free Ground Shipping (1 - 5 Days)
