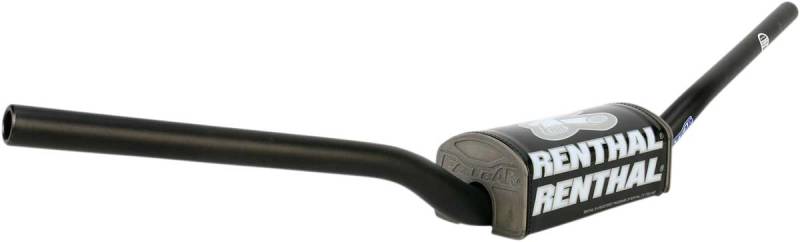

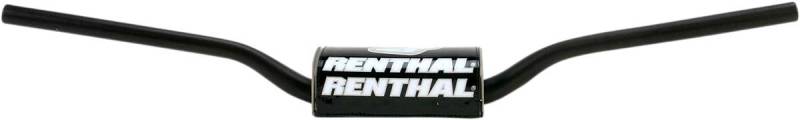

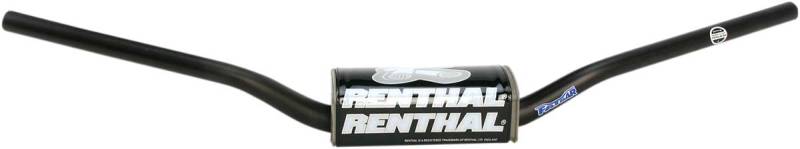

Renthal Fatbar Handlebar - KTM SX 125-450 2015 Bend - Black - 827-01-BK

827-01-BK
Not For Sale

Description

Width: 811mm
Height: 92mm
Rise: 52mm
Base: 117mm
Sweep: 52mm
Control Length: 222mm
Features a tapered outer wall resulting in a 1-1/8in. clamping diameter and 7/8in. diameter at the control ends
7010 T6 aluminum with a braceless design and 5.0mm wall thickness at the bends to add strength
Laser etched positioning grid
Knurled grip area increases bonding between bars and grips
Shot peened, anodized finish protects against corrosion
Requires1-1/8in. bar mounts
Specifications
Material7010-T6 Aluminum
Clamping Diameter1-1/8"
Rise2-1/16"
FeaturesSmooth, Unknurled / Includes Pad
Pullback/Sweep2-1/16"
Base ColorBlack
Controls Diameter7/8"
Type/BendOEM Replacement Bend / Fatbar
Clamping Width4-5/8"
Color/FinishBlack / Anodized
FinishAnodized
Height3-5/8"
Product NameHandlebar
StyleUniversal
Handlebar Diameter1-1/8"
Width32"

Product Series

Application List

MODELYEARS
KTM
125 SX2011–2016
150 SX2011–2016
250 SX2011–2016
250 SX-F2011–2016
250 SX-F Factory Edition2016
350 SX-F2011–2016
450 SX-F2011–2016
450 SX-F Factory Edition2012–2013, 2016

Shipping Information

  • Item Requires Shipping
  • 5.0 lbs.
  • W6.0000” x H10.0000” x L4.0000”
