Wiseco Top End Kit - 4.00mm Oversize to 81.00mm, 10.25:1 Compression - K1314

K1314
Not For Sale

Description

SPECIFICATIONS
Displacement: 1314cc
Bore - Standard: 77.00mm
Bore - Actual: 81.00mm
Bore - Oversize: 4.00mm
Stroke: 63.75mm
Compression Ratio - Actual: 10.25:1
Note: Cylinder sleeving required
Note: Crankcase cleanup req
ITEM CONTENTS
3032FA - Sleeve Yamaha FJ11/12 1250-1314
3189XG - 81.00 mm Ring Set
4552M08100 - Yam FJ11/FJ1285-93,XJR1295-99 10.25:1
CW18 - ROUND WIRE PIN LOCKS 18MM (PAIR)
S278 - PistonPin 18mm x 2.472in. NonChromed TW
W5391 - Base Gasket .020 Fiber Yamaha FJ1100/12
W5587 - Head Gasket SprgSteel Yamaha 1314cc

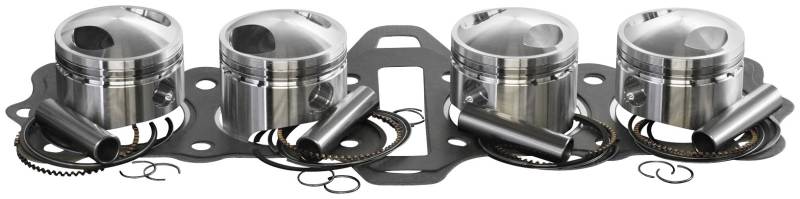

Contains all the necessary components for overboring or rebuilding your top end
Feature forged pistons, rings, wrist pins, circlips and top end gasket set

Product Series

Application List

MODELYEARS
Yamaha
FJ11001985
FJ12001986–1993

Shipping Information

  • Item Requires Shipping
  • 5.0 lbs.
  • W6.0000” x H10.0000” x L4.0000”
