SPECIFICATIONS
Displacement: 1429cc
Bore - Standard: 81.00mm
Bore - Actual: 85.00mm
Bore - Oversize: 4.00mm
Stroke: 63.00mm
Compression Ratio - Actual: 13.5:1
Note: Cylinder boring required
Note: Cylinder replating required
Note: RACE USE ONLY
ITEM CONTENTS
3346XR - 85.00 mm Ring Set
4864M08500 - Suz GSX1300R Hayabusa 99-05 13.5:1 CR
CW20 - ROUND WIRE PIN LOCKS 20MM (PAIR)
S549 - PistonPin 20mm x 2.002in. NonChromed TW
W6357 - Head Gasket MLS .030 Suz GSXR1300 99-09

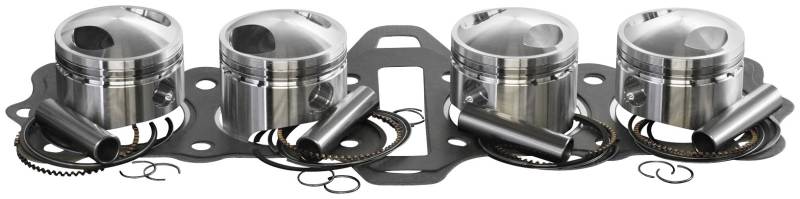

Contains all the necessary components for overboring or rebuilding your top end
Feature forged pistons, rings, wrist pins, circlips and top end gasket set
