Feuling HP+ Complete 525 Chain Drive Conversion Cam Kit - 7220

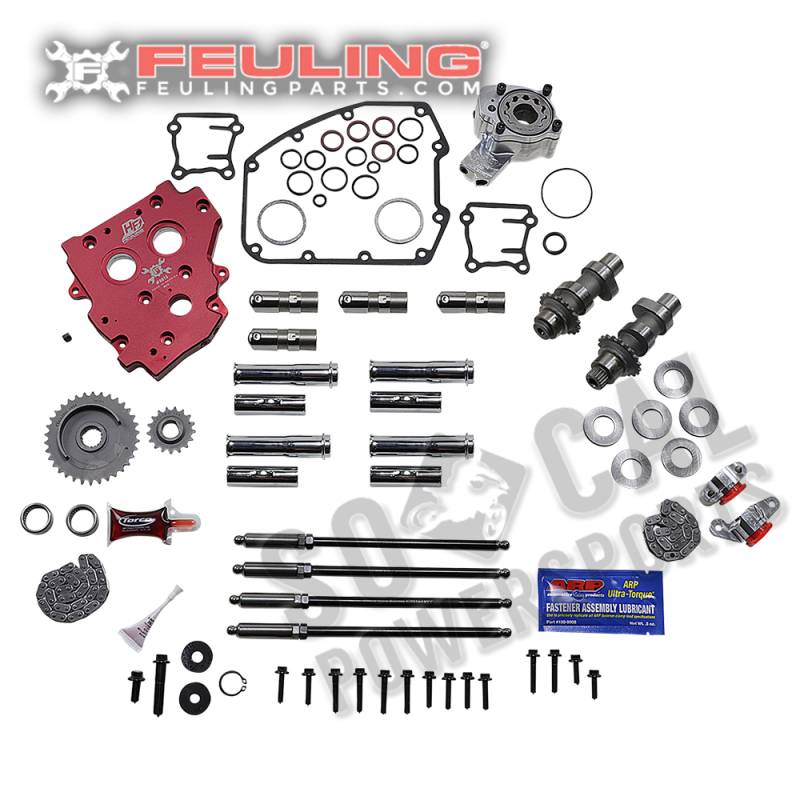

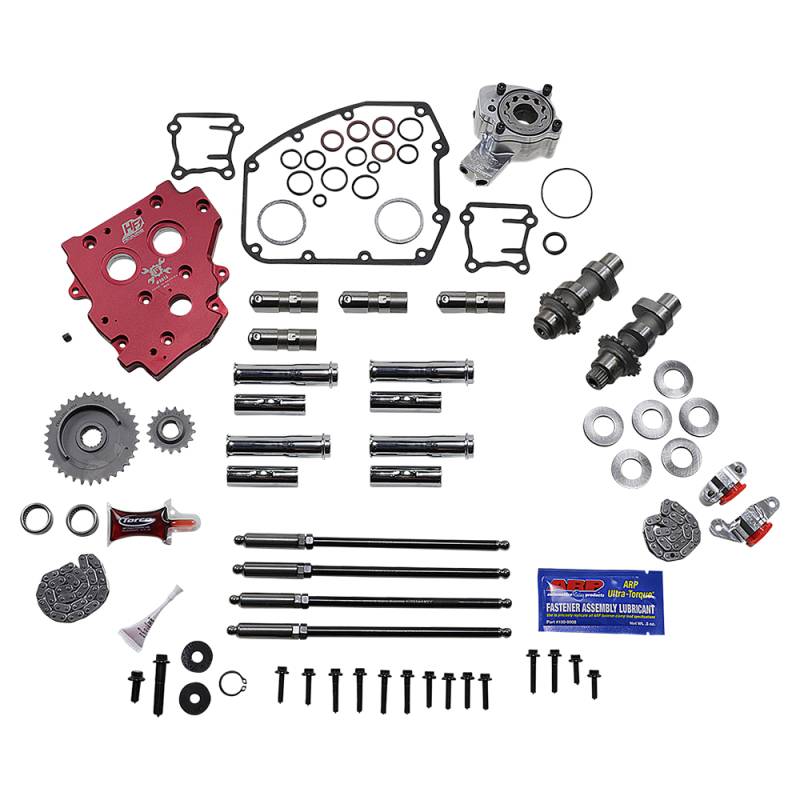

All necessary components from top to bottom of the camchest Each part works and functions together in total harmony Provides maximum reliability, longevity, peak performance and the coolest engine and oil temperatures obtainable Includes : Feuling HP+ high volume oil pump, high flow billet Camplate, REAPER Series Camshafts, HP+ hydraulic roller Lifters, adjustable Pushrods, Timken/Koyo Bearings, Gaskets, O-rings, hardware, ARP fasteners, washers, moly lube and Loctite Conversion chain drive kits allows owners to update old mechanical style cams and tensioners to new hydraulic tensioner system Conversion camshafts for 99-06 Twin Cam engines; these camshafts utilize the 99-06 inner cam journals with the 07-13 outer cam journals allowing the use of the 07-13 camplates, oil pump, hydraulic chain tensioners and chain drive system

Specifications

Application	Intake / Exhaust
Exhaust Duration	236°
Exhaust Lift at TDC	0.112"
Exhaust Open	51°
Features	Quick Install Adjustable Pushrods
Intake Lift	0.525"
Intake Lobe Centerline	109°
Product Name	Camchest Kit
Exhaust Lift	0.535"
Intake Duration	226°
Exhaust Close	5°
Intake Close	42°
Model	HP+®
Exhaust Lobe Centerline	113°
Type	Chain Conversion
Grind	525 Series
Intake Lift at TDC	0.099"
Intake Open	4°
