Feuling HP+ Complete 525 Chain Drive Conversion Cam Kit - 7220P

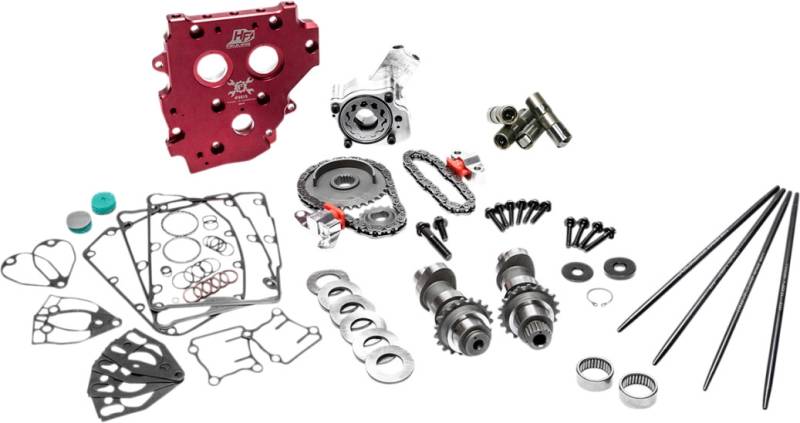

All necessary components from top to bottom of the camchest Each part works and functions together in total harmony Provides maximum reliability, longevity, peak performance and the coolest engine and oil temperatures obtainable Includes : Feuling HP+ high volume oil pump, high flow billet Camplate, REAPER Series Camshafts, HP+ hydraulic roller Lifters, adjustable Pushrods, Timken/Koyo Bearings, Gaskets, O-rings, hardware, ARP fasteners, washers, moly lube and Loctite Conversion chain drive kits allows owners to update old mechanical style cams and tensioners to new hydraulic tensioner system Conversion camshafts for 99-06 Twin Cam engines; these camshafts utilize the 99-06 inner cam journals with the 07-13 outer cam journals allowing the use of the 07-13 camplates, oil pump, hydraulic chain tensioners and chain drive system

Specifications

Application	Exhaust / Intake
Type	Chain Conversion
Exhaust Close	5°
Intake Close	42°
Intake Duration	226°
Exhaust Lobe Centerline	113°
Intake Lift at TDC	0.099"
Intake Lobe Centerline	109°
Exhaust Lift at TDC	0.112"
Exhaust Open	51°
Features	One Piece Pushrods
Intake Open	4°
Grind	525 Series
Intake Lift	0.525"
Product Name	Camchest Kit
Exhaust Duration	236°
Exhaust Lift	0.535"
Model	HP+®
