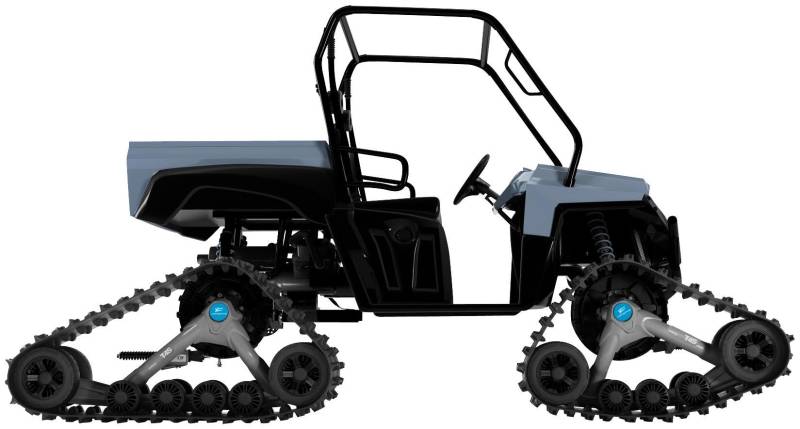

Camso Tatou UTV T4S Track System - 6522-20-1280

6522-20-1280
Not For Sale

Description

Internal drive allows Four Season operation without compromises Matches or exceeds the Tatou UTV, the industrys prior benchmark, in deep snow performance and keeps working all year-round New track profile with upgraded side support improves traction over original Tatou UTV Double tandem stabilizer on frame pivots absorb impacts for better ride and handling Puncture-proof tires (pioneered by Camoplast) improve reliability and provide maximum shock absorption for improved ride quality Wide wheels are supported by two sealed bearings and additional seals for added protection from the elements Largest footprint in the industry (2,470 sq. in.) for best flotation in deep snow, wet mud, sand, and other difficult environments No reduction in load capacity when switching from tires to tracks Kits for most popular UTVs Available in charcoal gray
Specifications
Front Height25"
Ground Surface1,62 m² (2520 in²)
Lug Height1.125"
Rear Height24.7"
Rear Track Length116.7"
Rear Track Width14"
Tooth Count15-18
Front Track Length98.5"
Front Track Width12.5"
FeaturesFor A-Arm Independent Suspension
Ground Clearance+5"
ModelUTV 4S1
Product NameTrack System

Product Series

Application List

YearsMakeModelApplicationNotes
2019 - 2020John DeereGator XUV 835R Deluxe CabPermanent interference
2018 - 2020John DeereGator XUV 835M HVACPermanent interference
2018 - 2018John DeereGator XUV 835RPermanent interference
2018 - 2020John DeereGator XUV 835EPermanent interference
2018 - 2020John DeereGator XUV 835MPermanent interference
2018 - 2020John DeereGator XUV 835M CabPermanent interference
