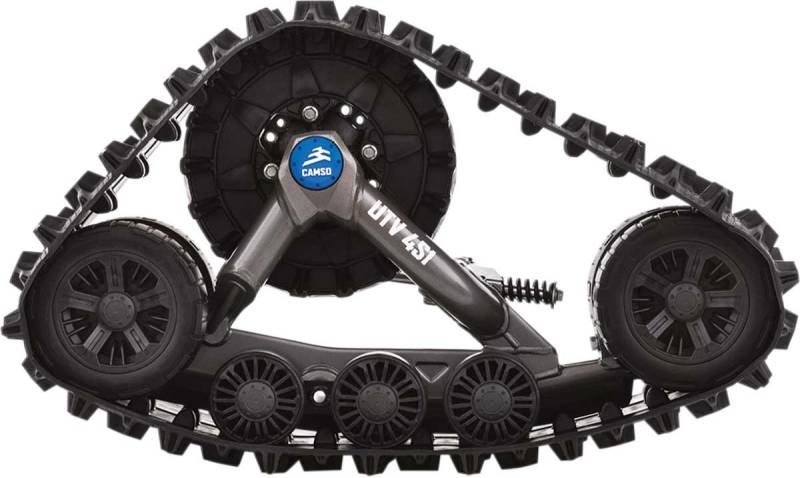

Camso Tatou UTV T4S Track System - 6522-20-1295

6522-20-1295
Not For Sale

Description

Internal drive allows Four Season operation without compromises Matches or exceeds the Tatou UTV, the industrys prior benchmark, in deep snow performance and keeps working all year-round New track profile with upgraded side support improves traction over original Tatou UTV Double tandem stabilizer on frame pivots absorb impacts for better ride and handling Puncture-proof tires (pioneered by Camoplast) improve reliability and provide maximum shock absorption for improved ride quality Wide wheels are supported by two sealed bearings and additional seals for added protection from the elements Largest footprint in the industry (2,470 sq. in.) for best flotation in deep snow, wet mud, sand, and other difficult environments No reduction in load capacity when switching from tires to tracks Kits for most popular UTVs Available in charcoal gray
Specifications
ModelUTV 4S1
FeaturesFor A-Arm Independent Suspension
Front Height25"
Ground Clearance+5"
Rear Track Length116.7"
Rear Track Width14"
Ground Surface1,62 m² (2520 in²)
Lug Height1.125"
Rear Height24.7"
Product NameTrack System
Front Track Length98.5"
Front Track Width12.5"
Tooth Count15-18

Product Series

Application List

YearsMakeModelApplicationNotes
2018 - 2020John DeereGator XUV 865EPermanent interference
2018 - 2020John DeereGator XUV 865M HVACPermanent interference
2018 - 2020John DeereGator XUV 865MPermanent interference
2018 - 2018John DeereGator XUV 865RPermanent interference
2018 - 2020John DeereGator XUV 865M CabPermanent interference
2019 - 2020John DeereGator XUV 865R Deluxe CabPermanent interference

Shipping Information

  • Item Requires Shipping
  • 5.0 lbs.
  • W6.0000” x H10.0000” x L4.0000”
  • Free Ground Shipping (1 - 5 Days)
