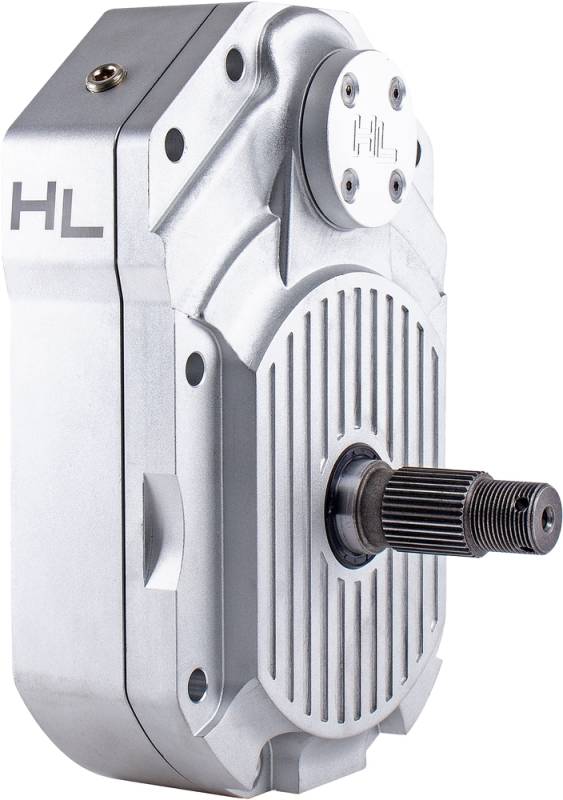

High Lifter Products 6in. Portal Gear Lift - 45% Gear Reduction - PGL-645DI-C1DMC

45% & 60% Dual Idler Reductions
Why is this 6In. kit better than our competitor?
Forged Gear Boxes - Strongest boxes on the market because forging produces a tougher piece of metal. Forging is stronger than both cast and billet aluminum. Competitors use cast aluminum and billet aluminum boxes. These portal boxes are extremely robust and give you more worry-free miles than any other portal.
Gear Box Venting - Customers asked for box venting and we give you the option. Our box design offers a plug for venting with an optional easy to install kit that will be available soon. Vent kits allow an advantage of cooling which reduces early deterioration of the gaskets and seals.
Gasket Material and Design - High density Kevlar fiber gaskets plus no additional sealant is needed. Gasket material is creep resistant plus oil and coolant resistant. Seals - Two oil seals on the spindle shaft for 100% more sealing area. Dual seals prevent water intrusion and oil leaks. True triple seal on the input shaft which includes a wiper seal that provides a significant extra layer of protection.
Backing Plate - These are the strongest backing plates on the market. 5/16In. steel plate with bent flanges for strength and durability. Welded gusset brackets and designed to factory off-set. Works with all control arms that are built to factory hub specifications.
13In. Rotor - Precision ground stainless steel rotors (this is a big deal for brake performance). Access holes for ease of assembly and disassembly. Slotted rotor allows for heat dissipation and cooling.
Gear Profile - Alloy steel heat treating process increases overall internal and external strength. CNC precision ground machining ensures excellent fitment and increased strength. Controlled gear lapping for ease of installation and a quieter performance.
What does the 45% or 60% Dual Idler Gear Lift offer?
High Lifter improved the portal design by adding a second idler gear in the gear box. The dual idler gears spread the load over twice as many teeth on the gear sets, which doubles the area and reduces stress by half. You gain more reliable torque transfer. If you run a 40In. tire or larger, this is the ideal gear ratio and the dual idler gears are almost a must. Stop burning up belts and breaking so many axles; differentials; drive shafts; snorkel gears… 45% or 65% Gearing extends brake life by needing brakes less often due to greatly improved engine braking. Even though a lower gear ratio will get your speedometer closer to a stock reading, that is still too high a gear to offset the loss of torque caused by the larger tires. If you don't have a need to run fast, a lower ratio performs better and gives you the power you want.
(Kits include 4 portal boxes)
