Vertex Cast Replica Piston Kit - Standard Bore 81.95mm - 24565

24565

Description

All piston skirts are coated with a hi-tech Molybdenum Disulphite coating for faster break-in time and increased piston life
Cast Replica piston kits are gravity cast aluminum alloy (not forged) with 18% silicone content, which produces an extremely light but very strong piston
Forged Replica pistons are forged from 2618 aluminum for superior strength and durability
Forged High Compression pistons improve power and torque across entire rpm range
Forged Big Bore pistons increase engine's displacement, torque, and peak horsepower
Forged Replica pistons are forged OE replacements
All pistons are heat treated with a T-5 hardening and tempering cycle
Replica pistons and all rings are OEM replacements

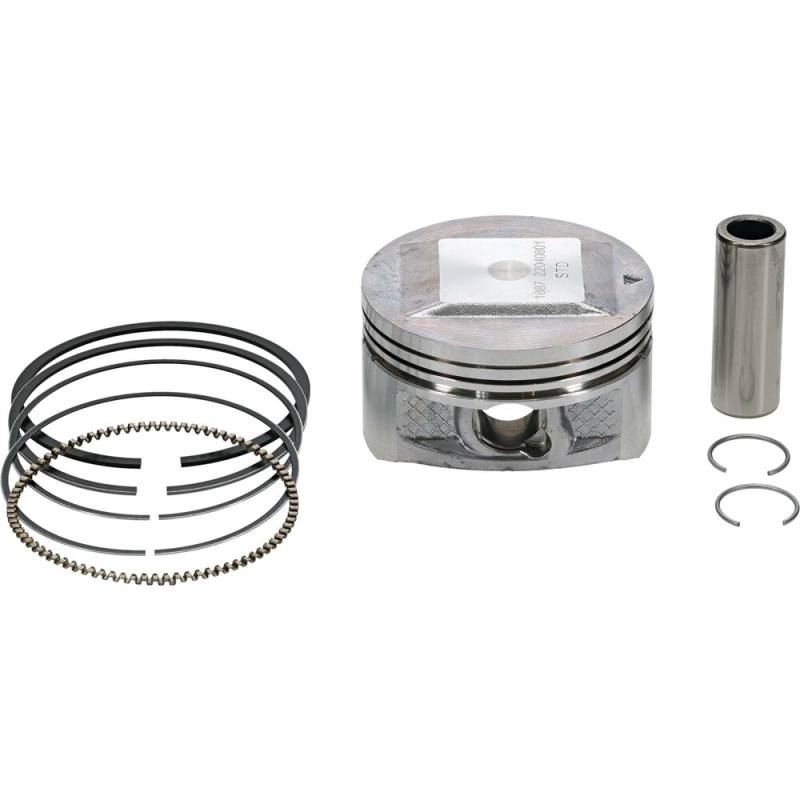

Kits include piston, rings, wrist pin and circlips
Two stroke replacement rings are sold individually (Example if your piston has two rings you will want to order two rings)
Four-stroke piston rings sold as a set
Cast Replica pistons - Cast OE replica piston

Product Series

Application List

YearsMakeModelApplicationNotes
2004 - 2005BombardierOutlander 330 HO 2x4
2004 - 2005BombardierOutlander 330 HO 4x4
2017 - 2021Can-AmOutlander 570
2017 - 2021Can-AmOutlander 570 DPS
2017 - 2021Can-AmOutlander 570 X mr
2017 - 2021Can-AmOutlander 650
2017 - 2021Can-AmOutlander 650 DPS
2017 - 2021Can-AmOutlander 650 XT

Shipping Information

  • Item Requires Shipping
  • 5.0 lbs.
  • W6.0000” x H10.0000” x L4.0000”
