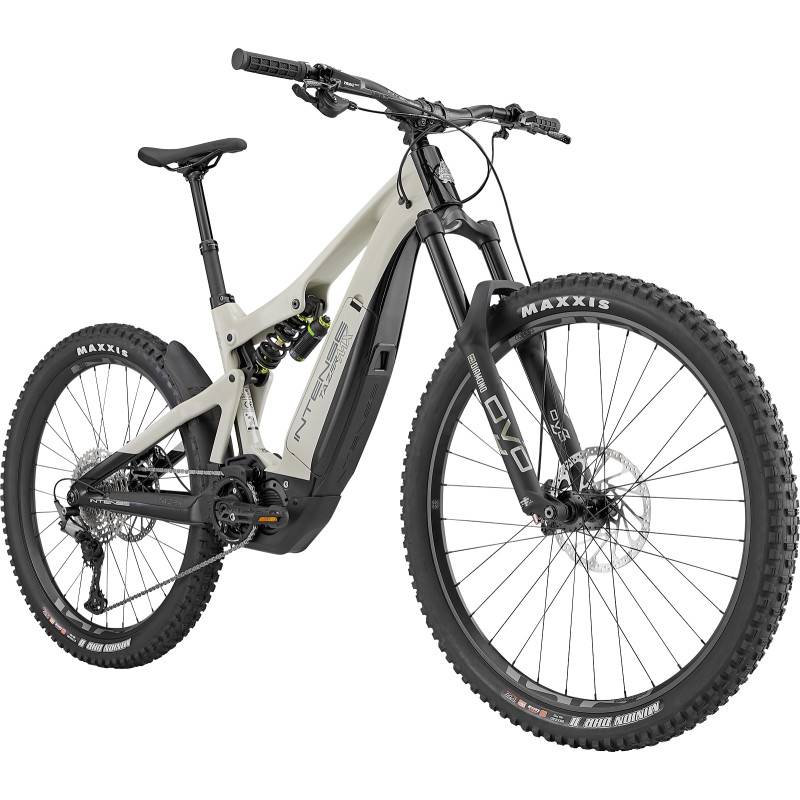

INTENSE Tazer MX Carbon Expert offers the lightweight INTENSE Tazer carbon fiber chassis with the proven Shimano E7000 motor system to tackle any trail
Suspension on the Expert build features a 160mm travel single crown DVO Diamond fork and DVO Jade coil shock
All components have been carefully selected to offer a confident riding experience for all levels
Frame: carbon fiber front and rear triangle with internal cable routing
Fork: DVO Diamond E3, single crown, 160mm travel
Shock: DVO Jade Coil, 155mm travel, high/ low speed compression adjustment, rebound adjustment
Spring 450lb (S/M size) and 550lb (L/XL size)
Motor: Shimano Steps E7000
Battery: BT-E8010, for Steps, 504Wh (battery lock with two keys)
Up to 62 miles on a single charge with an easy-to-swap Shimano battery, extra battery PART #2113-0778 sold separately; see BIKE COMPONENTS section
Display: Shimano SC7000
Brakes: TRP Trail EVO with 203mm R1 rotors front and back
Shifter: Shimano Deore 12-speed
Derailleur: Shimano Deore 12-speed
Crank: E thirteen E spec 34 tooth chainring 165mm length
Cassette: Shimano Deore 12-speed 11-51 tooth
Chain: Shimano Deore 12-speed
Wheelset: E thirteen E spec alloy rim 30mm rim width x 29" front / 35mm rim width x 27.5" rear
Hubs: INTENSE E-specific alloy hubs
Tires: Maxxis Minion DHR II Maxx Terra 3C EXO+ 29" x 2.60" front / 27.5" x 2.8" rear
Seatpost: INTENSE Recon Dropper post - 125mm length (S/M) and 150mm length (L/XL)
Saddle: SDG Bel-Air Saddle
Handlebar: INTENSE Recon 35mm OD x 800mm wide with 30mm rise
Stem: INTENSE 35mm OD x 45mm length
Grips: INTENSE Lock-on
Each bike comes with a torque wrench and tool set
Rear fender, skid plate and flack guard kit also included
Weight 51lb., 12oz. (size S/M, tubeless with pedals)
