The Waterproof 12V to USB Smart Adaptor was developed to provide power to the Quad Lock Weatherproof Wireless Charging Head for motorcycles without a factory-installed USB port via S'/Battery Ring Terminal. Easily toggle the Smart Adaptor between Auto, On and Off. Auto function is designed to keep the device off until input voltage rises above 13.5V and then turn off when voltage drops below 12V in order to keep the battery from draining.
IP66 Rated
Hardwired 1.5 USB-A Female Port & 10cm S' Pin
Input: 12V - 24v DC
Output: USB-A Up to 18W Max Power (5V/3A, 9V/2A, 12v/1.5A)
Reverse Polarity Protection saves your battery in the instance the Ring
Terminal Cables are connected to the incorrect battery terminal
In-line 3A rated fast blow fuse protects from battery drain in the rare case there was a fault
Includes:

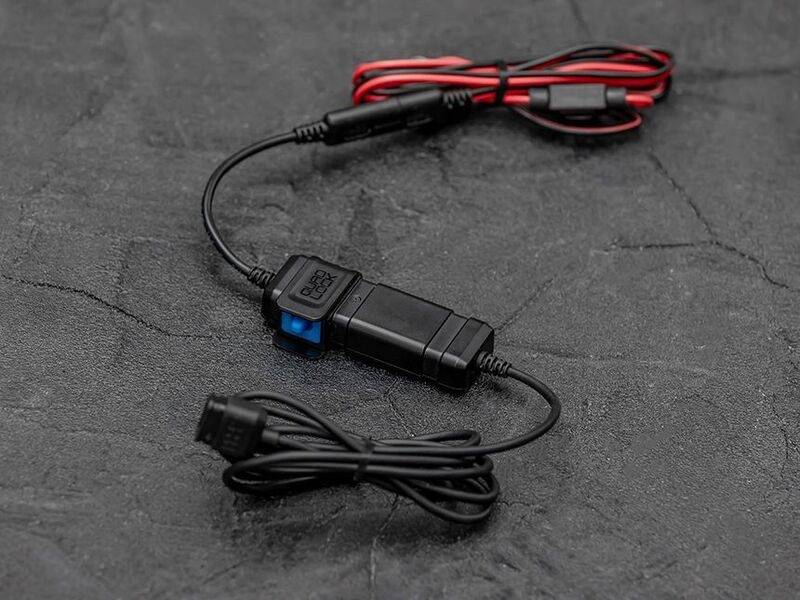

1x Waterproof 12V to USB Smart Adaptor with 1.5m USB-A Female
Port and 10cm S' Cable
1x 1m S' to Ring Terminal Cable with in-line fuse
1x USB-A Seal Boot
5x 5mm x 250mm Zip Ties
