TC Bros Internal Riser Bungs - 104-0074



These bungs are perfect for building custom riserless handlebars
Proudly made in the USA from premium American 1018 cold rolled steel for easy welding
The internal riser bungs are designed to fit inside 1in. outer diameter steel tubing with a maximum wall thickness of .120in. (11 gauge)
A machined chamfer allows for proper weld penetration
The 1in. diameter is a perfect match to your tubing and the 1-1/4in. overall length allows for sufficient thread engagement
The coped end bungs fit perfectly to 1in. diameter tubing and the 1in. length from edge of cope to flat face provides 1in. of rise once welded to your handlebar
These bungs feature 1/2-13 internal threads for mounting to Harley DavidsonR style triple trees
Your handlebar mounting bolts pass through the bottom of the triple trees and thread into these bungs for a much cleaner installation as compared to traditional clamp style risers

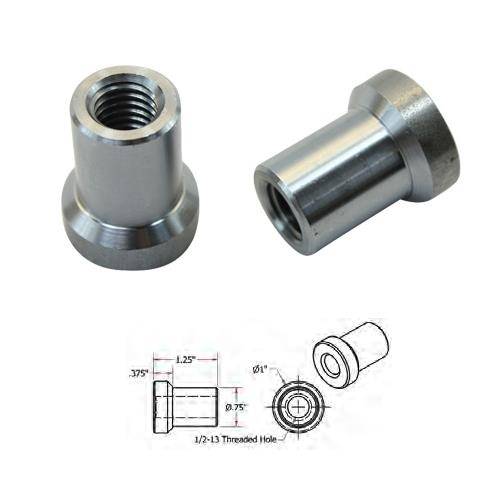

See photos for all dimensions
