Save time, simplify your install and get out on the trail.
The Trigger System eliminates the need to run wires under the dash or through the firewall of a vehicle when wiring accessories. It adds functionality such as a battery powered RF remote control for activating installed accessories from outside the vehicle, dimming and flashing functions for lighting, fused circuits with LED indicators to notify of blown fuses and more. The included RF remote has backlit buttons and can be programmed for security or use with additional remotes. It utilizes a universal mounting system that to accommodate numerous mounting surfaces. Several Trigger control boxes and remotes can be used together to control up to 24 accessories. Another option for control is the Trigger Bluetooth App that will allow control of the on/off, dimming or flashing functions when used with LED or conventional lighting.
Six Shooter Control Box:
Six channels, 2x 30-Amp circuits, 2x 10-Amp circuits, 2x 5-Amp circuits, all solid state
30-Amp, 10-Amp and 5-Amp fuses built-in with waterproof cover
100-Amp fuse installed on positive input wire for protection
Programmable RF remote with backlit buttons
Manual on/off switch on top of case
Bluetooth control from phone or tablet app
Waterproof case design withstands temps up to 250F and below freezing
LEDs to indicate relay on and if fuse is blown; blue for circuit on, red for blown fuse
12- to 24-Volt input by three wires: ground, switched positive, battery positive
Low-voltage shut down if battery voltage gets low
DIN connector built-in for manual control with conventional toggle switches; harness sold separately
Three-year limited manufacturers warranty

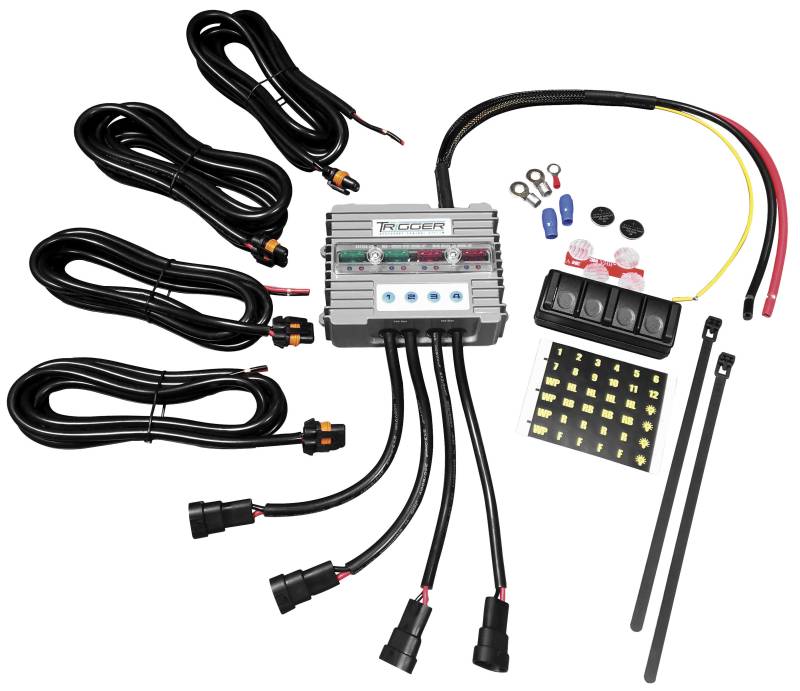

4-Channel Trigger Control Box:
Four channels, 2x 30-Amp circuits, 2x 10-Amp circuits, all solid state
30-Amp and 10-Amp fuses built-in with waterproof cover
Programmable RF remote with backlit buttons
Manual on/off switch on top of case
Bluetooth control from phone or tablet app
Waterproof case design withstands temps up to 250F and below freezing
LEDs to in
