Feuling HP+ Complete 630 Chain Drive Conversion Cam Kit - 7223ST

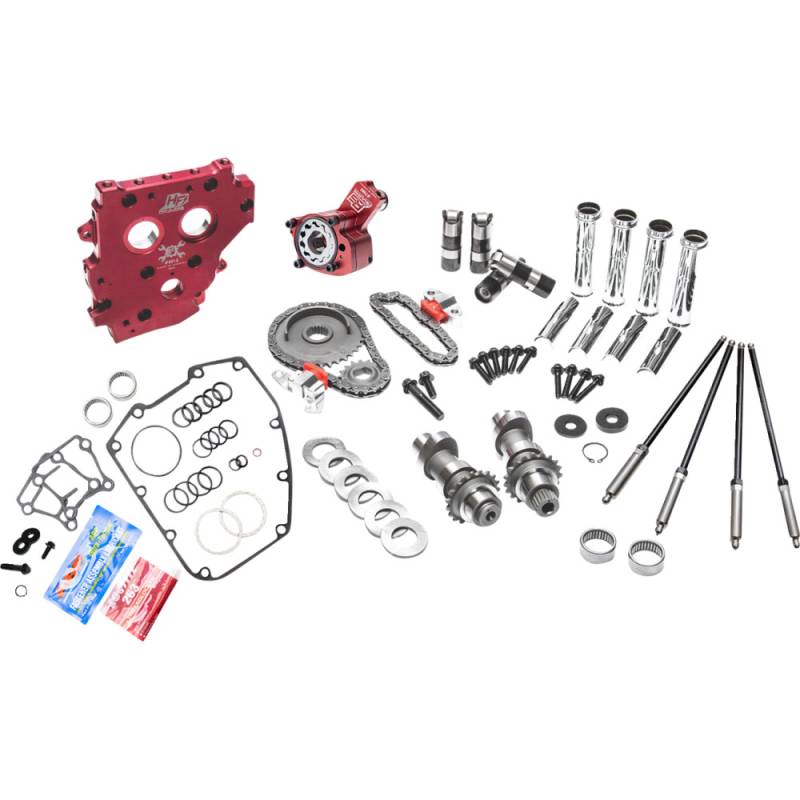

All necessary components from top to bottom of the camchest Each part works and functions together in total harmony Provides maximum reliability, longevity, peak performance and the coolest engine and oil temperatures obtainable Includes : Feuling HP+ high volume oil pump, high flow billet Camplate, REAPER Series Camshafts, HP+ hydraulic roller Lifters, adjustable Pushrods, Timken/Koyo Bearings, Gaskets, O-rings, hardware, ARP fasteners, washers, moly lube and Loctite Conversion chain drive kits allows owners to update old mechanical style cams and tensioners to new hydraulic tensioner system Conversion camshafts for 99-06 Twin Cam engines; these camshafts utilize the 99-06 inner cam journals with the 07-13 outer cam journals allowing the use of the 07-13 camplates, oil pump, hydraulic chain tensioners and chain drive system

Specifications

Features	Short Travel Lifters / Pushrod Tube Covers / Quick Install Adjustable Pushrods
Exhaust Lobe Centerline	112.5"
Intake Close	58°
Intake Lobe Centerline	109°
Exhaust Close	19°
Intake Lift at TDC	0.188"
Product Name	Camshaft Kit
Application	Exhaust / Intake
Exhaust Lift	0.630"
Intake Duration	258°
Model	Race Series®
Type	Chain Conversion
Exhaust Lift at TDC	0.171"
Exhaust Open	60°
Intake Open	20°
Intake Lift	0.630"
Exhaust Duration	263°
Grind	630 Series
