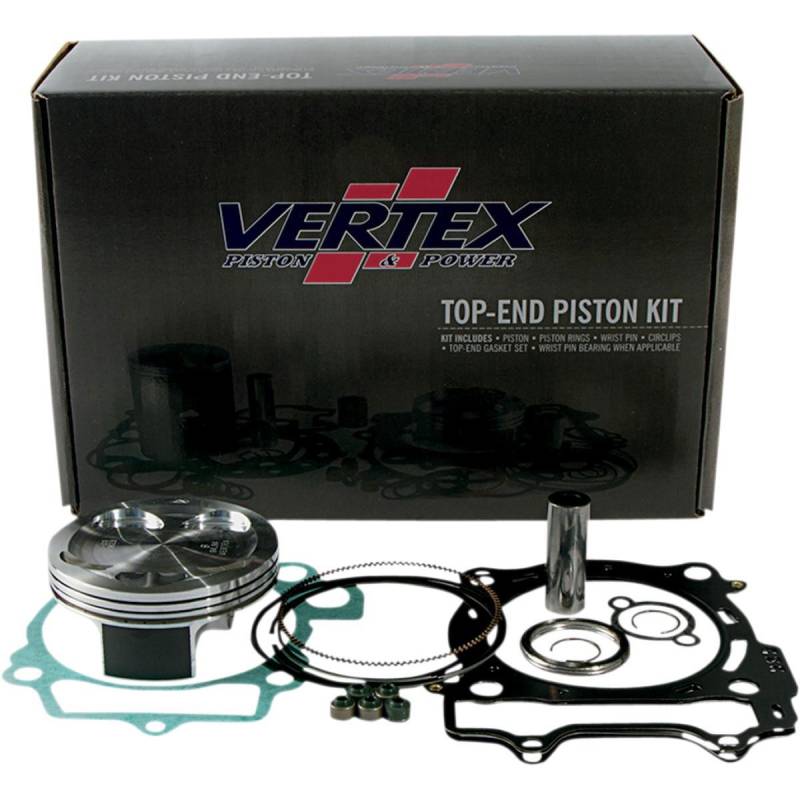

Vertex Forged Replica Top End Piston Kit - Standard Bore 76.95mm, 13.5:1 Compression - VTKTC23941A

VTKTC23941A

Description

All pistons are heat-treated with a T-5 hardening and tempering cycle
All piston skirts are coated with a high-tech molybdenum disulphite coating for faster break-in time and increased piston life
Cast piston kits are gravity-cast aluminum alloy (not forged) with 18% silicone content, which produces an extremely light but very strong piston
Forged pistons are forged from 2618 aluminum for superior strength and durability
Forged High Compression pistons improve power and torque across entire rpm range
Big Bore pistons increase engine's displacement, torque and peak horsepower
Forged Replica pistons are forged OE replacements
Replica pistons and all rings are OEM replacements
Kits include piston, rings, wrist pin and circlips
Replacement two-stroke piston rings sold individually;four-stroke piston rings sold as a set

Product Series

Application List

YearsMakeModelApplicationNotes
2015 - 2017YamahaWR250F
2014 - 2015YamahaYZ250F
2015 - 2016YamahaYZ250FX

Shipping Information

  • Item Requires Shipping
  • 5.0 lbs.
  • W6.0000” x H10.0000” x L4.0000”
  • Free Ground Shipping (1 - 5 Days)
