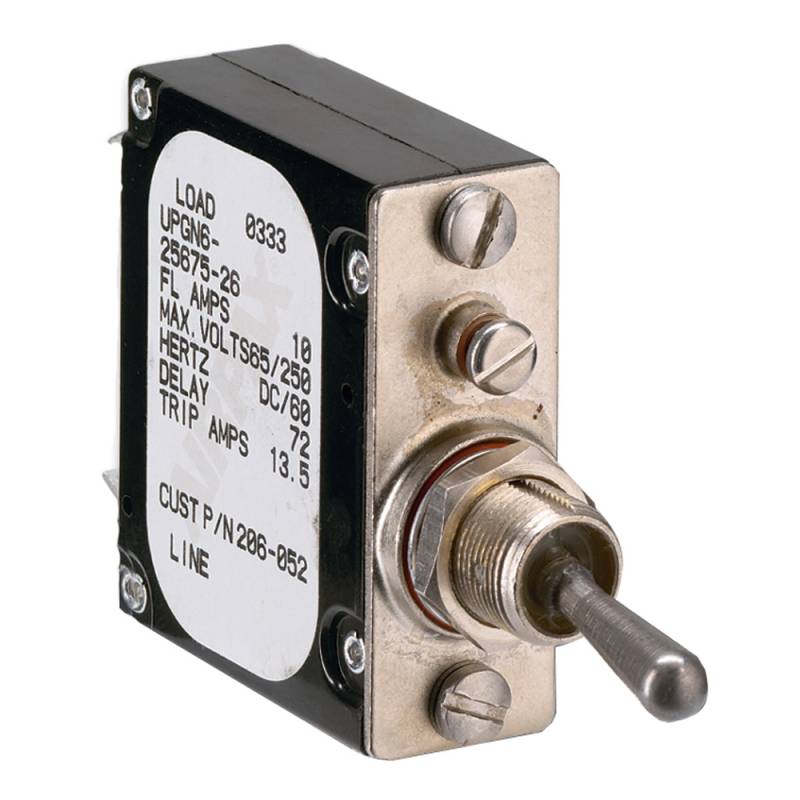

Paneltronics Breaker 10 Amps A-Frame Magnetic Waterproof
New
206-052S
USD
34.95
Panel Seal/Waterproof "A" Frame Magnetic Circuit Breakers- Branch AC or DC circuit breaker for Paneltronics electrical distribution panels
- Meets all American Boat and Yacht Council (ABYC) Standards for non ignition protected circuit breakers
- UL Recognized (UL 1077) for use in the U.S.A., and CSA Certified for use in Canada
- Trip free (ABYC E-11.10.1.5.4 and E-11.10.2.1.1)
- Manual reset (ABYC E-11.10.1.5.6 and E-11.10.2.1.1)
Specifications :
- Handle Color Metal with Silicon rubber seal
- Maximum Amperage 50 Amps
- Maximum Voltage /AIC 32 VDC/ 2,500 Amps with no Back-up Fuse (ABYC E-11.10.1.5.5)
- Rated Switch Cycles Rated Switch Cycles 10,000 actuations at rated current and voltage
- Electrical Hardware Screw 10-32 x 3/8" pan combo head (P/N 197-188)
- Mounting Hardware Hex nut 1/2-32 (supplied with circuit breaker)
- Lockwasher 1/2" internal tooth (supplied with circuit breaker)
- Optional Boot Black silicone rubber (P/N 048-015)
- 206-052S
- 206-052S
- 602290201411
-
Paneltronics
-
Temporarily Not Available
-
New
-
Item Requires Shipping
-
5.0 lbs.
-
W6.0000” x H10.0000” x L4.0000”
