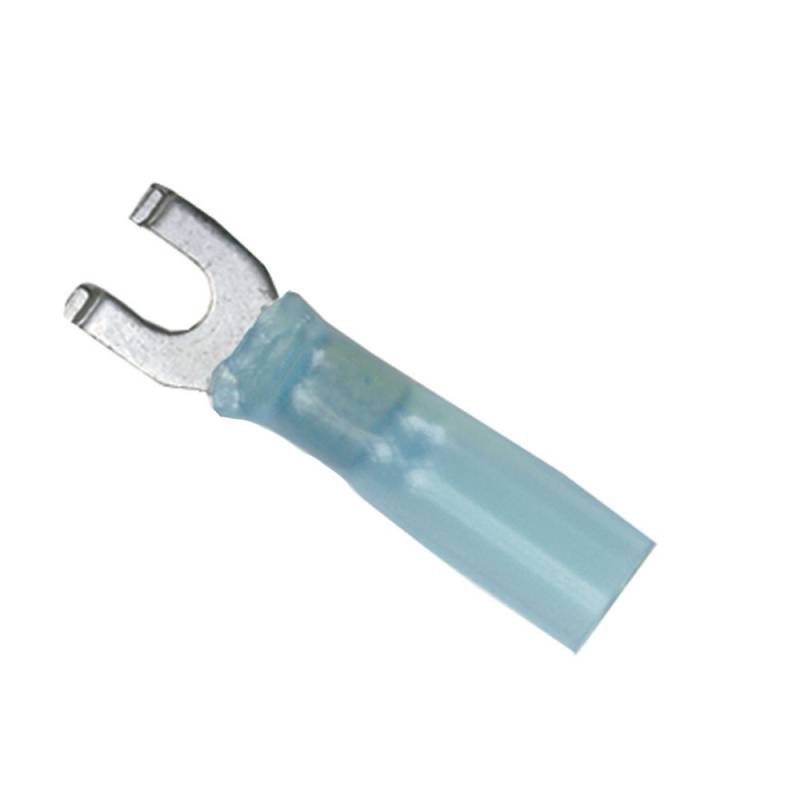

16-14 Gauge - #8 Heat Shrink Spade Terminals - 100-PackFeatures: Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.
Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.
Nylon insulator, preferred by experts.
UL Listed and CSA Recognized
Highest shrink ratio - shrinks to 1/3 original size.
Shrinks at 257 deg. F/125 deg. C.
Operating temperature range 40 deg. C to 110 deg. C.
Tinned for corrosion resistance.
Pure copper for maximum current flow.
Brazed seam for maximum strength.
Wire Range: 16-14
mm: 1-2
Screw Size: 4mm
Qty/Pkg: 100
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
