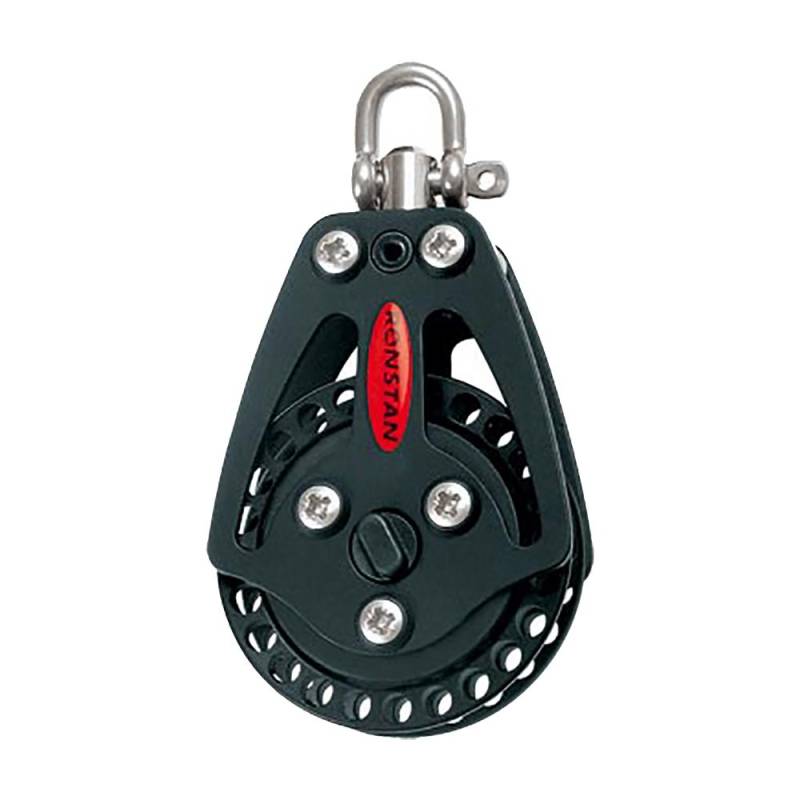

Ronstan Series 60 Ultimate Ratchet - Single

RF62100

Description

Series 60 Ultimate Ratchet - Single

The extruded hole design, in conjunction with the groove profile of the sheave, provides a more powerful grip than conventional designs - up to 20:1 holding power. Unrivaled low weight is achieved by the use of a Torlon® ratchet pawl, high grade machined alloy sheave and black Acetal hubs and bearings. On-Off switching knob is fitted to both sides of the swivel blocks (one can be removed if desired). Ratchet blocks can be disassembled for servicing or customization.

Features:
  • Unrivalled 20:1 holding power
  • Dual sided On-Off switch
  • Ability to operate On/Off switch under load
  • Low friction ball bearing system
  • Lightweight
  • Cheek cut-outs for easy bearing maintenance
Applications:
  • Mainsheet on powerful dinghies and skiffs
  • Series 60 mainsheet systems on sports boats using RF7 mainsheet swivel units
  • Control line applications on larger yachts
  • Spinnaker sheets on sports boats and small keel boats (lateral lead blocks)
Materials:
  • Carbon black Acetal ball bearings
  • Anodised aluminium sheave and cheek plates
  • Torlon® ratchet pawl
  • Grade 316 stainless steel forged shackle
Specifications:
  • Sheave Ø: 2-3/8"
  • Max. Rope Ø: 3/8"
  • Pin Ø: 3/16"
  • M.W.L.: 550lb
  • B. L.: 3020lb
  • Weight: 5.3oz

Application List

Universal

Shipping Information

  • Item Requires Shipping
  • 0.4 lbs.
  • W3.0000” x H2.0000” x L6.0000”
