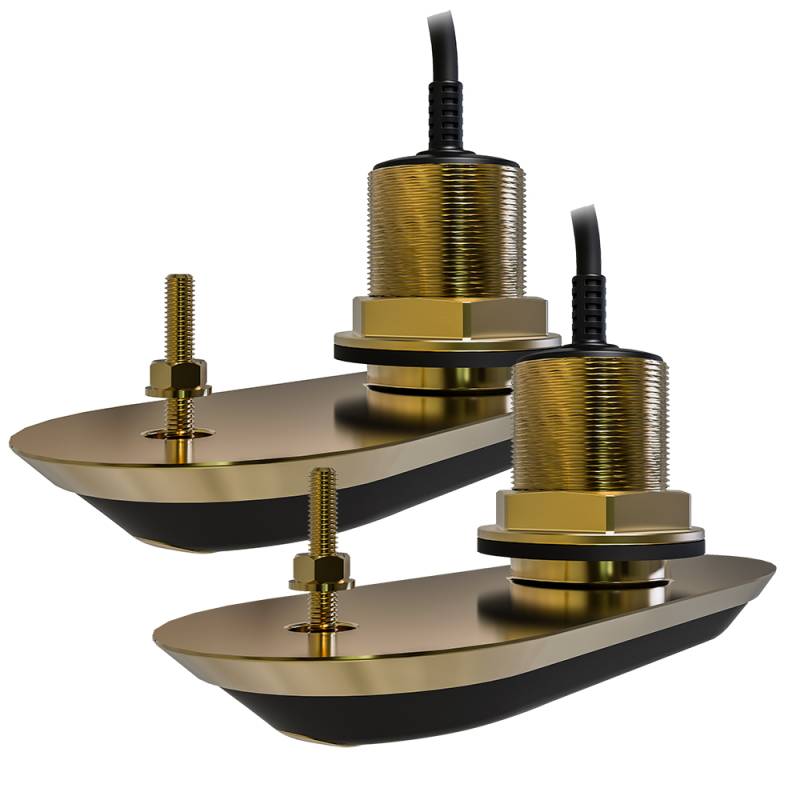

Raymarine RV-220 RealVision 3D™ Bronze Thru-Hull Transducer Pair Pack - 20° - 8M Cable & Y-Cable

T70319
Limited Supply: only 2 remaining
Was: $1,999.99
Sale: $1,977.51
Save: 1%
Save: $22.48

Qty:
Free Ground Shipping (1 - 5 Days)

Description

RealVision 3D™ Bronze Thru-Hull Transducer Pair Pack - 20° - 8M Cable & Y-Cable

Designed for inboard or outboard boats, the RV-220 Bronze Through Hull Transducer System lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D™ sonar.

The RV-220 system is a 4-channel, Wide Spectrum CHIRP transducer system with DownVision™, SideVision™, high frequency CHIRP fish targeting and RealVision 3D™ sonar inside. The transducer system has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, automatically compensating for vessel motion. You’ll enjoy crystal-clear imagery in waves, swells, and while maneuvering. The RV-220 system also has a built-in fast response water temperature sensor for quick, accurate readings.

Raymarine’s RV-220 Bronze Through Hull Transducer system pack contains a pair of RealVision 3D transducers with internal offset to accommodate hull deadrise angles from 13° to 20°. This completely eliminates the need for fairing blocks. The low-profile design slips effortlessly through the water without causing drag or cavitation. The near-flush RV-220 system works great on trailered boats too.

The RV-220 system features rugged cast-bronze through hull bodies suitable for fiberglass or wooden hulls. One transducer transmits and receives to port and downwards, the other to starboard and downwards, ensuring a full 180° of underwater coverage even on boats with deep keels or other underwater protrusions. Each transducer features a 2M pigtail, joining y-cable and 8-meter extension cable, resulting in an overall cable length of 10M (33'.)

What’s in the Box?

  • RV-220P Bronze Port Transducer with 2M cable
  • RV-220S Bronze Starboard Transducer with 2M cable
  • RealVision 3D Transducer Y-Cable
  • RealVision 3D 8M (26') Transducer Extension Cable
  • Anti-rotation bolt kit
  • Installation instructions

Application List

Universal

Details

  • T70319
  • T70319
  • Raymarine
  • Available
  • New

Shipping Information

  • Item Requires Shipping
  • 23.2 lbs.
  • W16.0000” x H14.0000” x L28.0000”
  • Free Ground Shipping (1 - 5 Days)
