Intellisteer
Click on image to zoom

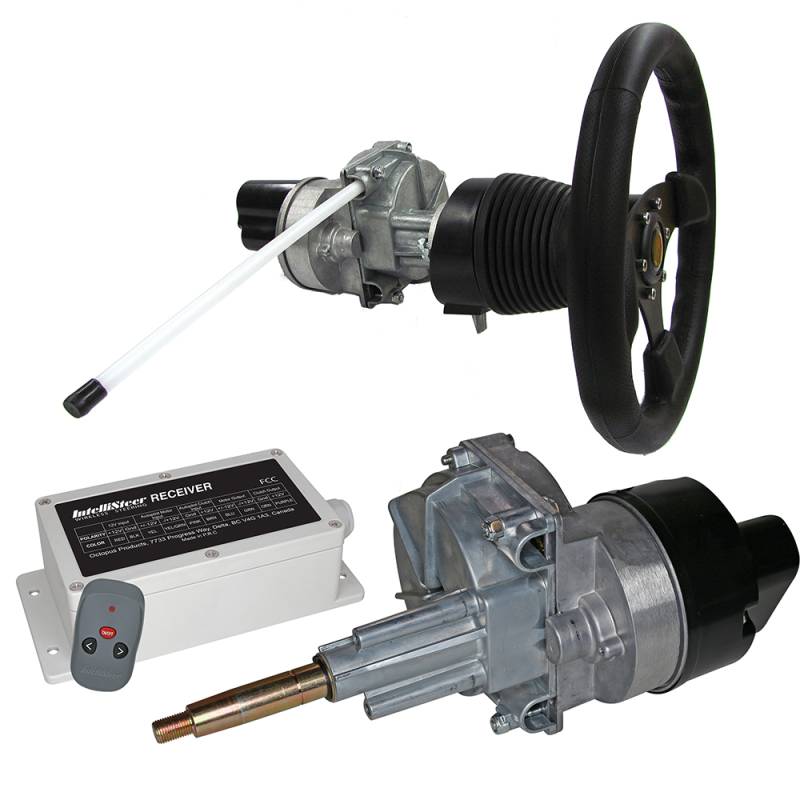

Intellisteer Type T f/Helms w/Tilt Function f/Cable Steered Boats w/Dash Mounted Wheel

INTTYPET

Description

Type T for Helms with Tilt Function for Cable Steered Boats with Dash Mounted Wheel

Features:
  • Replaces existing helm
  • Electronic clutch disengages for manual steering
  • Rotary drive system
  • Fits behind dash
  • Safety override technology
  • Current 1.25A Typical, 5A Peak
  • Wireless control module plus handheld pendant - steering in the palm of your hand
  • Steer, fish and cruise from anywhere on the boat
  • Easy DIY installation - no need for professional installer
  • 2 Year limited warranty - purchase with confidence
Specifications:
Wireless Controller & Receiver
  • Meets FCC standards
  • Additional Handheld and receiver can be paired in field
  • Pendant and receiver auto-off in 30 minutes if no usage
  • Over 1 Million control codes provide enhanced security
Handheld Pendant
  • Water proof
  • Supplied with 2xAAA batteries
  • Includes lanyard
Wireless Receiver & Motor Controller
  • Waterproof
  • Motor drive capability up to 25A
  • Overload protection
  • Reverse polarity protection
  • 12V DC nominal (9V min - 16V max operating range)
  • Offers pass-through capability for Autopilot motor and clutch control circuits

Application List

Universal

Shipping Information

  • Item Requires Shipping
  • 14.7 lbs.
  • W9.0000” x H9.0000” x L16.0000”
  • Free Ground Shipping (1 - 5 Days)
