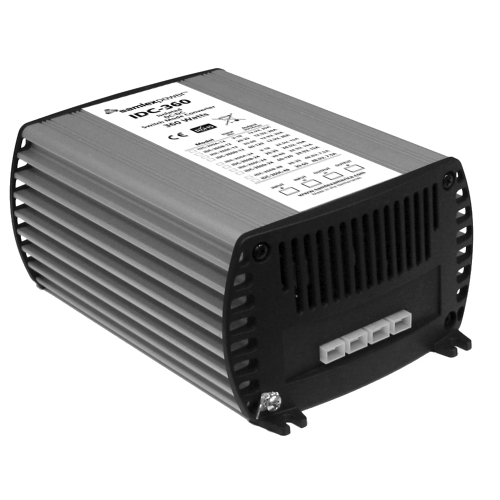

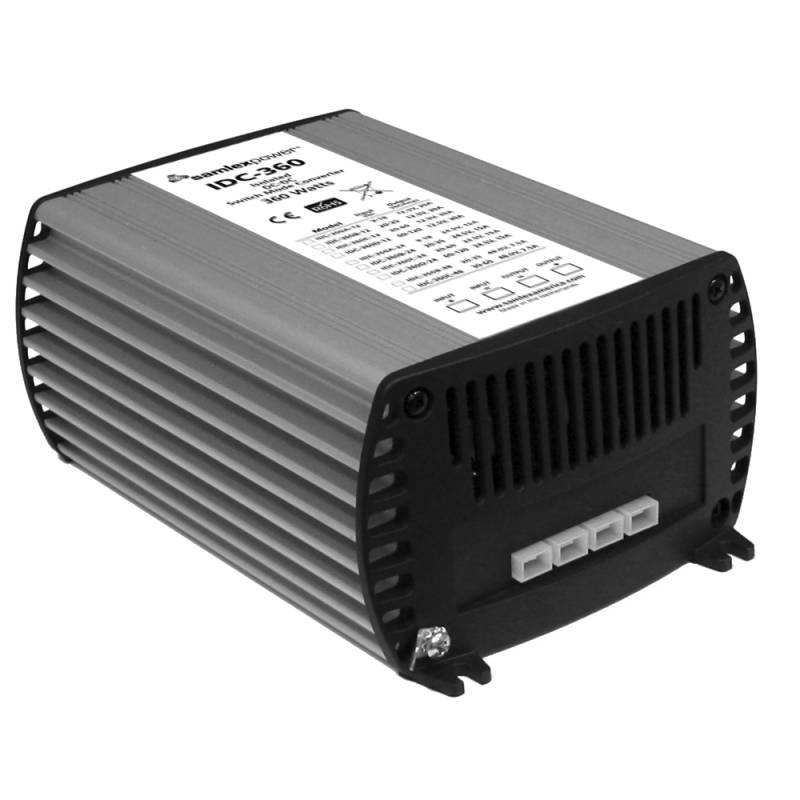

Samlex 360W Fully Isolated DC-DC Converter - 15A - 9-18V Input - 24V Output

IDC-360A-24

Description

360W Fully Isolated DC-DC Converter - 15A - 9-18V Input - 24V Output

IDC-360 series is a complete line of high efficiency 360 Watt isolated DC-DC converters suitable for applications requiring galvanic isolation between the input and the output. IDC-360A-24 isolated DC-DC converter provides a highly regulated output DC voltage of 24.5 Volts for an input DC voltage range of 9-18 Volts and rated output current of 15 Amps. Features of this isolated DC-DC converter include compact housing, fold-back current limiting and protection against short circuit, overheating, overvoltage and reverse polarity connection. The unit comes with 1/4” push-on flat blade “quick disconnect” connectors. IDC-360A-24 isolated DC-DC converter is EMI/EMC compliant and conforms to European standards EN50081-1 (for EMI), EN50082-1 (for EMC) and the European Automotive Directive 95/54/EC.

Features:

  • Fully Isolated
  • Short Circuit Protected
  • Current Limited
  • CE Approved
  • 2 Year Warranty

Specifications:

  • Input: 9-18 VDC
  • Output: 24 VDC
  • Watts: 360
  • Amps: 15 Amps
  • Weight: 3.1 (lbs)
  • Weight: 1.4 (kg)
  • Dimensions: 5.23 x 7.5 x 3.27 (in)
  • Dimensions: 132.8 x 190.5 x 83 (mm)
  • Safety: CE
  • Warranty: 2 Year Limited

Applications:

  • Earth moving equipment
  • Heavy trucks
  • Buses
  • Marine vehicles
  • CB radios
  • 24 Volt lighting systems
  • AM/FM sound systems
