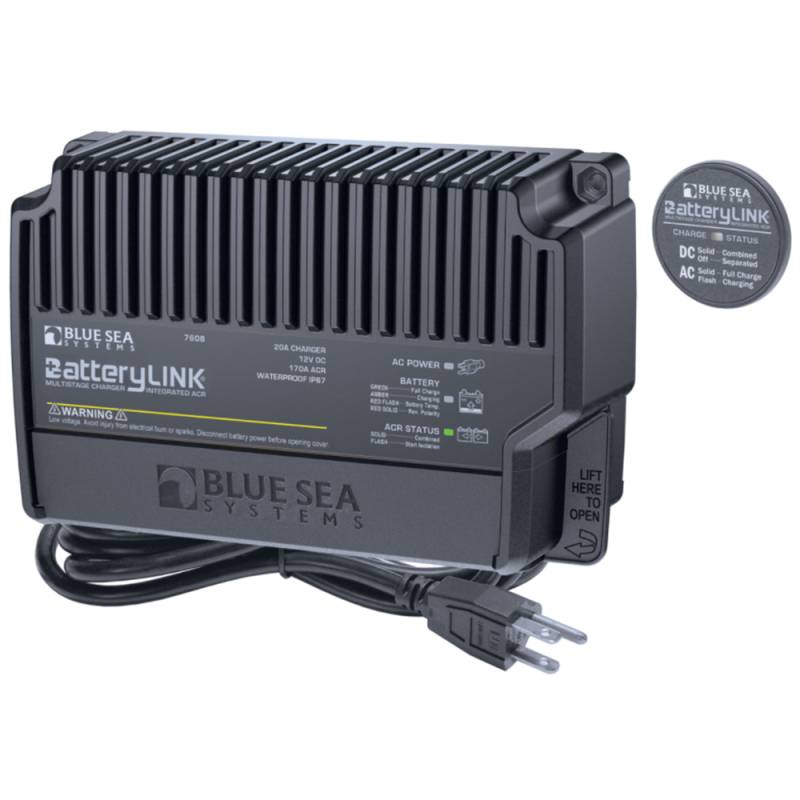

7608 BatteryLink® Charger (North America) - 12V - 20Amp - 2 Bank
Charge at or away from the Dock
- Compact 12V 20A – 2 Bank AC Charger
- 170A Continuous ACR
- Remote Emergency Jump Start
- Battery Temperature Compensation
- Remote Display Included
- IP67 Waterproof
Specifications:
- Total Output Current: 20A
- Nominal Voltage: 12V DC
- Number of Outputs: 1 Negative/2 Positive
- Terminal Stud Torque: 60 in-lb (6.78 Nm)
- Continuous Rating: 65A
- Intermittent Rating: 115A
- Universal AC Input Voltage: 90-265V AC
- AC Input Frequency: 50/60Hz
- Typical Float Voltage: 13.5V DC
- Battery Types: AGM/Flooded/TPPL
- Cable Size to Meet Ratings: 10 AWG Negative Cable/6 AWG Positive cable
- Maximum Battery CCA: 850CCA
- Maximum Cable Size: 1/0 AWG (50mm)
- Operating Current: 10mA/60mA
- Plug Style: North American: NEMA 5-15P
- Recommended Battery Bank Sizes: 60Ah Minimum
- Terminal Stud Size: 1/4"-20
- Warranty: 5 Year
- Combine 30 sec: 13.5V
- Combine 2 Min: 13.0V
- Open 10 sec: 12.35V
- Open 30 sec: 12.75V
