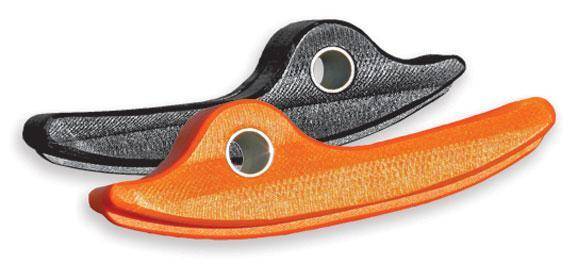

T.M. Designworks Upper Frame Chain Guide Pad - Orange - KTM-UFP-OR

KTM-UFP-OR

Description

Chain Guide pads offer improved and quiet chain performance.
Designed to reduce chain float as it impact the upper pad.
Features Powerlip top to keep chain in line with less noise.
Self-lube oil in material lowers drag and chain plate wear.
Aluminum bushing is installed for durability and light weight.
Replaces roller on some older models.
Must shorten sprocket guard to install on (08-11) KTM.

Product Series

Application List

YearsMakeModelApplicationNotes
2001 - 2002HusabergFX470E
2004 - 2005HusabergFC450
2001 - 2002HusabergFC470
2013 - 2013HusabergFE250
2001 - 2005HusabergFC550
2000 - 2000HusabergFC501
2010 - 2012HusabergFE390
2000 - 2003HusabergFE501E
2006 - 2016KTM200 XC-W
2002 - 2002HusabergFC470E
2000 - 2000HusabergFC600
2004 - 2008HusabergFE550E
2000 - 2013HusabergFE501
2013 - 2013HusabergFE350
2000 - 2003HusabergFE400E
2003 - 2003HusabergFS400E
2000 - 2017KTM250 SX
2000 - 2000HusabergFE600
2000 - 2000HusabergFE400
2004 - 2008HusabergFS450E
2012 - 2013HusabergTE125
2009 - 2013HusabergFE450
2001 - 2008HusabergFE650E
2005 - 2008HusabergFS650C
2006 - 2008KTM250 SXS-F
2000 - 2000HusabergFE600E
2000 - 2008KTM125 SXS
2011 - 2011HusabergFS570
2014 - 2017HusqvarnaFC250
2004 - 2008HusabergFE450E
2014 - 2017HusqvarnaFE250
2000 - 2000HusabergFX600E
2007 - 2017KTM250 XC-F
2014 - 2017HusqvarnaTE300
2000 - 2007KTM250 SXS
2002 - 2008HusabergFS650E
2000 - 2005KTM250 EXC
2009 - 2012HusabergFE570
2014 - 2017HusqvarnaFE450
2001 - 2003HusabergFX650E
2012 - 2015KTM350 EXC-F
2000 - 2003KTM200 MXC
2000 - 2005KTM300 MXC
2011 - 2013HusabergTE250
2000 - 2002KTM380 MXC
2010 - 2011HusabergFX450
2014 - 2017HusqvarnaTC125
2014 - 2017HusqvarnaFE350
2003 - 2017KTM450 SX-F
2000 - 2003KTM250 MXC
2006 - 2015KTM300 XC-W
2011 - 2013HusabergTE300
2000 - 2001KTM400 LC4
2014 - 2017HusqvarnaFC350
2014 - 2016HusqvarnaTE125
2014 - 2017HusqvarnaTC250
2003 - 2008KTM450 SXS
2006 - 2015KTM250 XCF-W
2012 - 2012KTM350 Freeride
2000 - 2001KTM125 EXE
2000 - 2000KTM400 SXC
2014 - 2017HusqvarnaFC450
2000 - 2017KTM125 SX
2007 - 2008KTM144 SX
2000 - 2002KTM520 SX
2000 - 2000KTM400 SC
2003 - 2005KTM450 EXC
2010 - 2014KTM150 XC
2005 - 2009KTM450 SMR
2014 - 2017HusqvarnaFE501
2008 - 2017KTM150 SX
2006 - 2016KTM250 XC
2004 - 2006KTM525 SMR
2012 - 2012KTM450 SX-F Factory Edition
2003 - 2005KTM525 MXC
2003 - 2005KTM250 EXC 4-Stroke
2006 - 2015KTM450 XC-F
2014 - 2017HusqvarnaTE250
2000 - 2004KTM200 SX
2006 - 2015KTM250 XC-W
2012 - 2012KTM500 EXC Six Days
2012 - 2015KTM500 XC-W
2003 - 2006KTM525 SX
2000 - 2005KTM300 EXC
2006 - 2009KTM200 XC
2000 - 2007KTM125 EXC
2000 - 2002KTM380 SX
2012 - 2015KTM350 XC-F
2000 - 2006KTM400 EXC
2000 - 2002KTM520 EXC
2007 - 2010KTM400 XC-W
2001 - 2002KTM400 MXC
2003 - 2005KTM450 MXC
2000 - 2005KTM200 EXC
2008 - 2008KTM505 SX-F
2012 - 2015KTM350 XCF-W
2000 - 2002KTM520 MXC
2003 - 2006KTM525 EXC
2008 - 2011KTM450 EXC-R
2005 - 2017KTM250 SX-F
2004 - 2004KTM450 SMS
2006 - 2007KTM525 XC-G
2012 - 2015KTM500 EXC
2006 - 2015KTM300 XC
2008 - 2009KTM505 XC-F
2008 - 2011KTM530 EXC-R
2007 - 2007KTM525 XC-W
2011 - 2015KTM350 SX-F
2000 - 2006KTM540 SXC
2000 - 2002KTM380 EXC
2000 - 2002KTM400 SX
2006 - 2015KTM450 XC-W
2006 - 2007KTM525 EXC-G
2008 - 2011KTM530 XC-W

Shipping Information

  • Item Requires Shipping
  • 5.0 lbs.
  • W6.0000” x H10.0000” x L4.0000”
