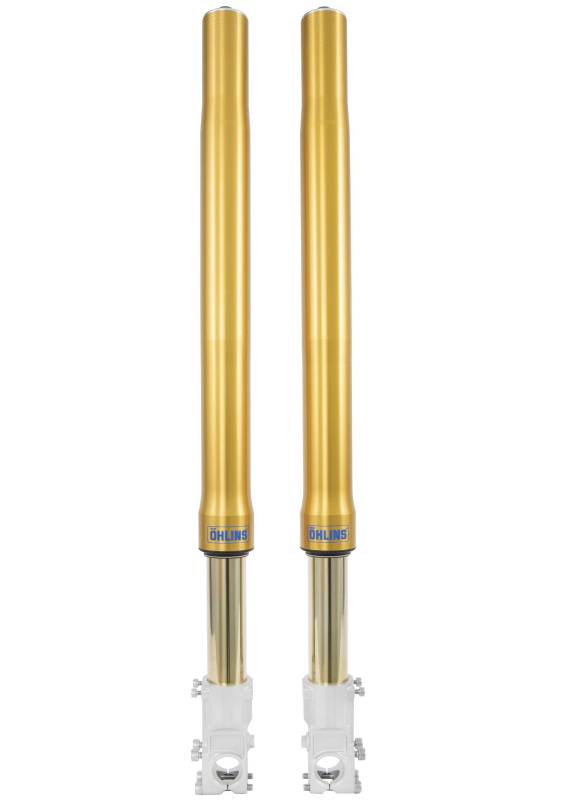

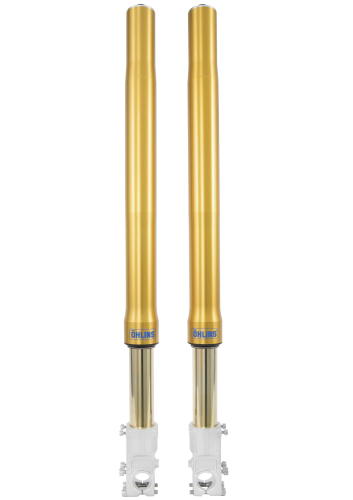

The technology in this fully adjustable fork is proven through the years on numerous applications. Caf racers, scramblers, custom art or just a good fork to your standard bike? This fork works for all applications. The top cap gives the possibility to adjust spring preload as well as compression adjustment in each leg separately. The external adjuster on the fork bottom clamps is for rebound adjustments. The fork bottoms are clean without brake caliper mountings to give the fork leg a clean look if you go with a left side brake only. This also enables the fork to be mounted on various models.
Stroke: 120 mm
Length: 800 mm
Top clamp diam.: 50 mm
Lower clamp diam.: 54 mm
Wheel axle: 32 mm
Spring rate: 8,5 N/mm
Fully adjustable
Setting can be changed with help from hlins Service Centers
NOTE: w/o brake caliper/fender mounts Spring series 08790-xx (pair) 04744-xx (each)
