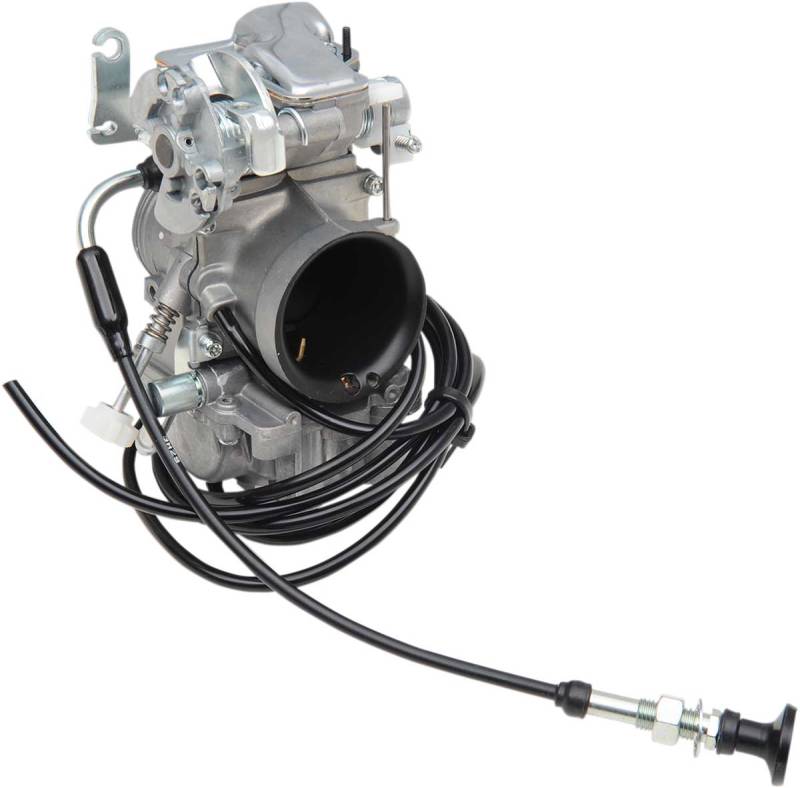

Mikuni TM Series Flat Slide Carburetor (TM40-6) - 40mm - TM40-6

TM40-6
Not For Sale

Description

Spigot Mount: 40mm
Main Jet: 165
Pilot Jet: 17.5
Needle Jet: 784-13002-Y-6/568
Throttle Valve: N/A
Jet Needle: J8-9DJY01
TM Series flat side carburetors provide a significant performance improvements over older round slide carburetors.
Air flows faster, smoother through the TM Series venturi and jet blocks due to the flat slide design which help create a smooth bore effect.
The high velocity air flow means a stronger vacuum at the needle jet for more precise metering, better throttle response.
Specifications
Air Jet1.1
Main Jet165 (4/042)
Needle Valve-
Product NameCarburetor
Slide Cutaway-
Needle JetY-6 (568 Series)
StyleFlat Slide
Color/FinishSilver
Spigot Mounting Outside Diameter44
Base ColorSilver
Carburetor Size40.00 mm
Pilot Jet17.5 (VM22/210)
NeedleJ8-9DJY01
TypeBell Crank Push-Pull

Product Series

Application List

Universal
